OKOndt Group

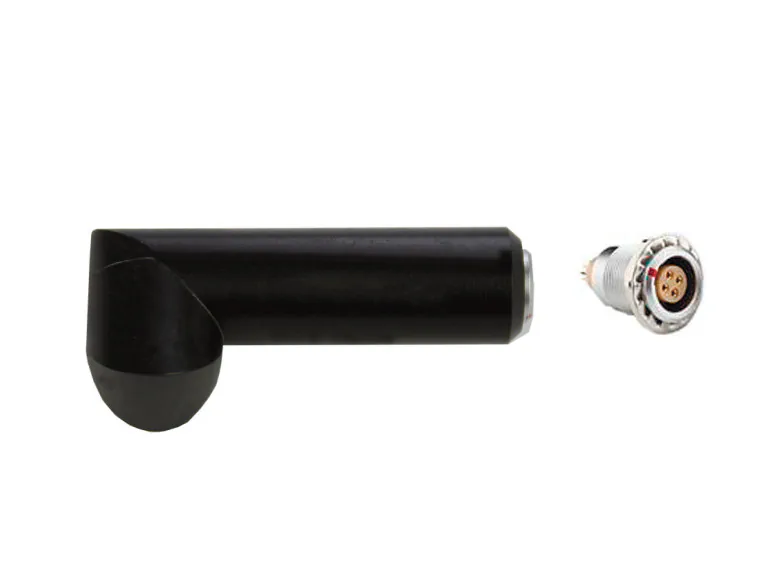

Right Angle Weld Probe (90˚ tip, Transverse, Bridge)

Üretici ürün açıklaması

Right Angle Weld Eddy Current Probe (90˚ tip, Transverse, Bridge)

Marka

OKOndt Group

Kategori

Eddy current testing

Yöntem / ürün ailesi

Brochure: Eddy current probes — WLD100 K5А.5×2-.2 DAT0	Tip Ø 'D', in/mm: .2/5 \| Length, in/mm: 2/50 \| Frequency, kHz: 100-1000 \| Connector: Lemo 04 \| Material: Fe \| Defects under paint coating: up to 0.3 mm \| Subsurface defects: +
Brochure: Eddy current probes — WLD100 K5А.5×2-.35 DAT0	Tip Ø 'D', in/mm: .35/8.9 \| Length, in/mm: 2/50 \| Frequency, kHz: 100-1000 \| Connector: Fe \| Material: up to 1 mm \| Defects under paint coating: +
Brochure: Eddy current probes — WLD100 K5А.5×2-.43 DAT0	Tip Ø 'D', in/mm: .43/10.9 \| Length, in/mm: 2/50 \| Frequency, kHz: 100-1000 \| Connector: Fe \| Material: up to 1 mm \| Defects under paint coating: +
Brochure: Eddy current probes — WLD100 K5А.5×2-.63 DAT0	Tip Ø 'D', in/mm: .63/16 \| Length, in/mm: 2/50 \| Frequency, kHz: 100-600 \| Connector: Fe \| Material: up to 1 mm \| Defects under paint coating: +
Brochure: Eddy current probes — WLD100 K5А.5×2.5-1 DAT0	Tip Ø 'D', in/mm: 1/25.4 \| Length, in/mm: 2.5/65 \| Frequency, kHz: 100-600 \| Connector: Fe \| Material: up to 1.5 mm \| Defects under paint coating: +
Brochure: Eddy current probes — WLD	Column 2: 100K \| Column 3: 5А \| Column 4: .5 \| Column 5: × \| Column 6: 2 \| Column 7: – \| Column 8: .63D \| Column 9: AT \| Column 10: 0
Brochure: Eddy current probes — 1	Column 2: 2 \| Column 3: 3 \| Column 4: 4 \| Column 6: 5 \| Column 8: 6 \| Column 9: 7 \| Column 10: 8

Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.

Bu ürün için doğrulanmış bir ürün dokümanı henüz yayımlanmadı.

Ürün teklifi isteyin

Satın almak istediğiniz NDT ve PWHT cihazlarını, sarf malzemelerini ve yedek parçaları ürün teklif listenize ekleyin.
