SMARTSCAN Aircraft Wheel Inspection System

Ürün özeti

SMARTSCAN, farklı üreticilerin uçaklarına ait ana ve burun tekerleklerinin girdap akımı yöntemiyle muayenesi için kullanılan bir sistemdir. Yarı otomatik SmartScan sürümü Eddycon C, otomatik SmartScan-FA sürümü Eddycon D ile çalışır; 900 mm'ye kadar tekerlek çapı, 90 kg azami yük ve 0,1–2 mm arasında ayarlanabilir tarama helisi verilir. Tekerlek profil yüzeyini uyarlamalı olarak takip eder ve referans blokla otomatik kalibrasyon yapar.

SMARTSCAN Aircraft Wheel Inspection System

SMARTSCAN Aircraft Wheel Inspection System

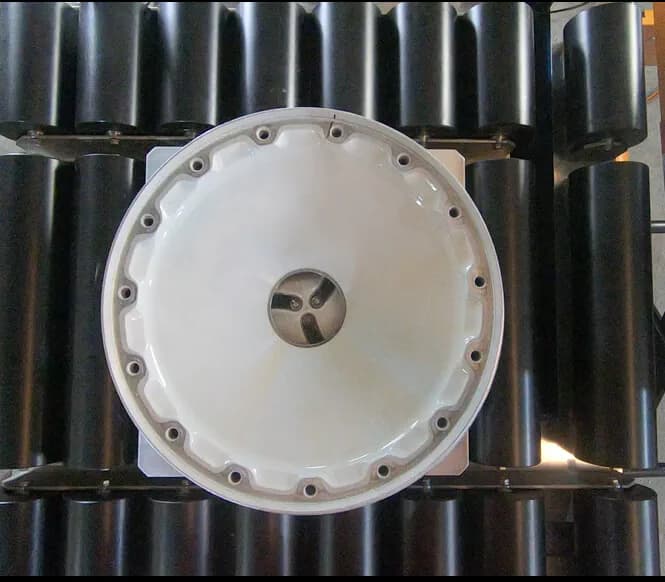

  • SMARTSCAN Aircraft Wheel Inspection System — 2

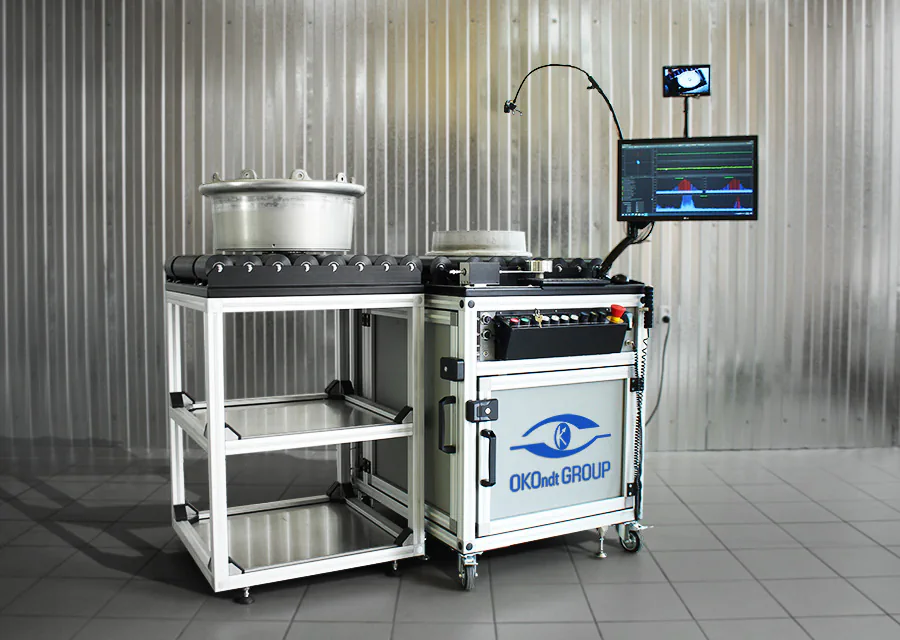

  • SMARTSCAN Aircraft Wheel Inspection System — 3

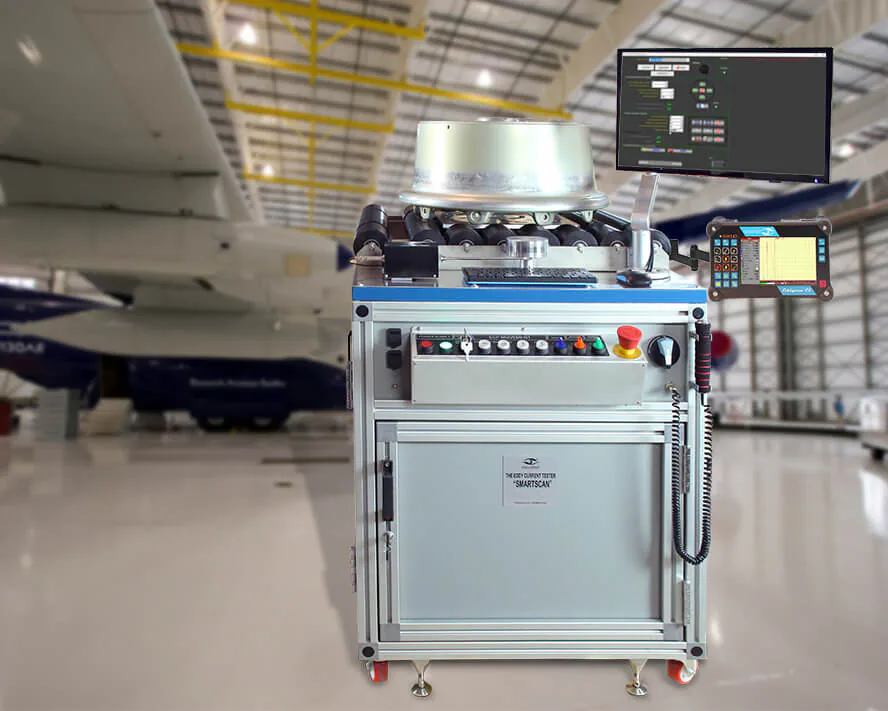

  • SMARTSCAN Aircraft Wheel Inspection System — 4

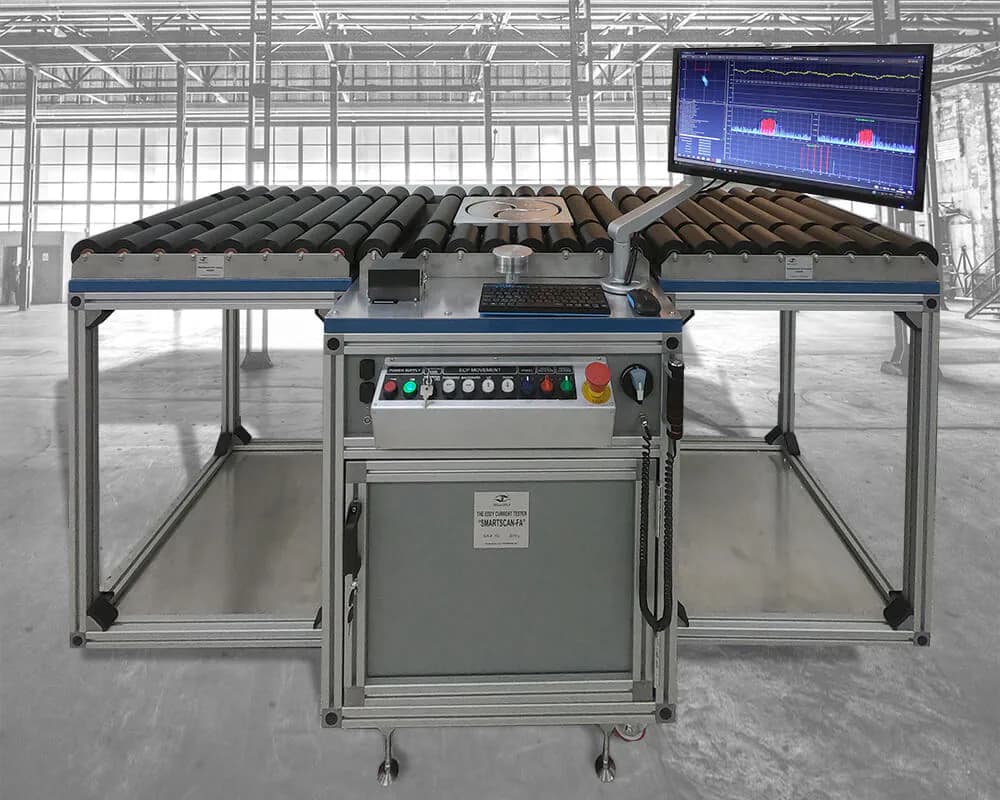

  • SMARTSCAN Aircraft Wheel Inspection System — 5
  • SMARTSCAN Aircraft Wheel Inspection System — 6

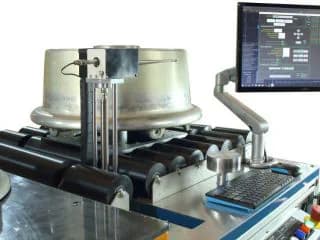

  • SMARTSCAN Aircraft Wheel Inspection System — 7

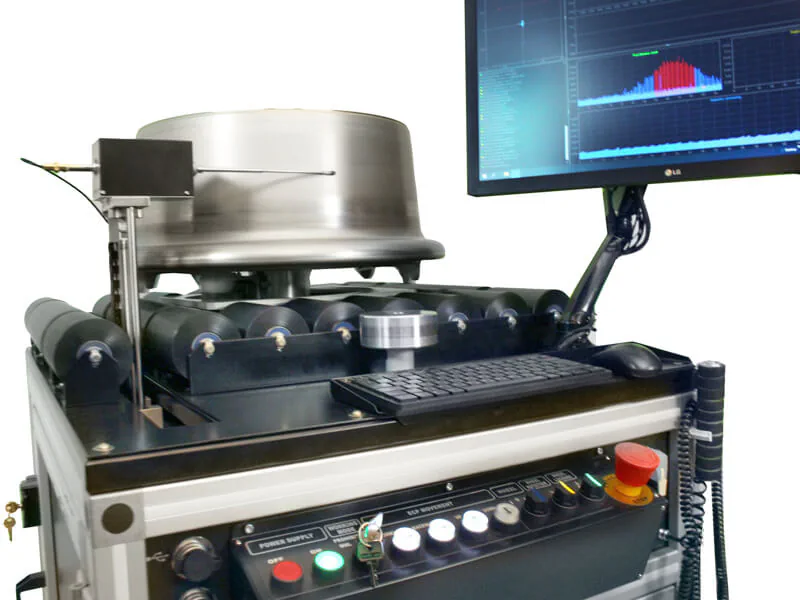

  • SMARTSCAN Aircraft Wheel Inspection System — 8

1 görsel daha bu sayfada gösterilmiyor.

Marka
OKOndt Group
Kategori
Eddy current testing
Yöntem / ürün ailesi

Teknik Özellikler

SMARTSCAN System Specifications — System typeSmartScan: Semi-automated | SmartScan-FA: Automated
SMARTSCAN System Specifications — Overall dimensionsSmartScan: 47 x 31 x 39 (in.)* 1200 × 800 × 1000 (mm)* | SmartScan-FA: 47 x 31 x 39 (in.)* 1200 × 800 × 1000 (mm)*
SMARTSCAN System Specifications — WeightSmartScan: No more than 772 lbs (350 kg) | SmartScan-FA: No more than 772 lbs (350 kg)
SMARTSCAN System Specifications — Flaw detectorSmartScan: Eddycon C | SmartScan-FA: Eddycon D
SMARTSCAN System Specifications — ECP typeSmartScan: Pencil probe type with a cylindrical head. Frequency — 200 kHz ECP diameter – 15/64" (6 mm) Other standard ECP types – on request | SmartScan-FA: Pencil probe type with a cylindrical head. Frequency — 200 kHz ECP diameter – 15/64" (6 mm) Other standard ECP types – on request
SMARTSCAN System Specifications — Max wheel diameterSmartScan: 35 in. (900 mm) | SmartScan-FA: 35 in. (900 mm)
SMARTSCAN System Specifications — Max System loadSmartScan: 198 lbs (90 kg) | SmartScan-FA: 198 lbs (90 kg)
SMARTSCAN System Specifications — Inspection helixSmartScan: Adjustable from .004 to .08 in. (from 0.1 to 2 mm) | SmartScan-FA: Adjustable from .004 to .08 in. (from 0.1 to 2 mm)
SMARTSCAN System Specifications — Inspection areaSmartScan: Adaptive tracking of the wheel profile surface | SmartScan-FA: Adaptive tracking of the wheel profile surface
SMARTSCAN System Specifications — ECP vertical movementSmartScan: 17 in. (430 mm) | SmartScan-FA: 17 in. (430 mm)
SMARTSCAN System Specifications — Rotation speedSmartScan: 10-120 rpm | SmartScan-FA: 10-120 rpm
SMARTSCAN System Specifications — Inspection speedSmartScan: up to 33 fps (10 m/s) | SmartScan-FA: up to 75 fps (23 m/s)
SMARTSCAN System Specifications — AlarmsSmartScan: Visual and acoustic | SmartScan-FA: Visual (acoustic - optional)
SMARTSCAN System Specifications — Power supplySmartScan: 110-240 V, 50/60 Hz | SmartScan-FA: 110-240 V, 50/60 Hz
SMARTSCAN System Specifications — Data recording and storageSmartScan: Yes (Eddycon C memory) | SmartScan-FA: Yes (PC hard drive, database)
SMARTSCAN System Specifications — Manual inspectionSmartScan: Yes (set of ECPs for manual inspection) | SmartScan-FA: Optional (set of ECPs for manual inspection)
SMARTSCAN System Specifications — Remote “Pause” buttonSmartScan: Yes | SmartScan-FA: Yes
SMARTSCAN System Specifications — Wheel positionSmartScan: Flange up/Flange down | SmartScan-FA: Flange up/Flange down
SMARTSCAN System Specifications — Automatic reference block calibrationSmartScan: + | SmartScan-FA: +
SMARTSCAN System Specifications — Automatic stop on defectSmartScan: - | SmartScan-FA: +
SMARTSCAN System Specifications — TurntableSmartScan: rubber/plastic coated rolls | SmartScan-FA: rubber/plastic coated rolls
SMARTSCAN System Specifications — Control panelSmartScan: built-in | SmartScan-FA: built-in
SMARTSCAN System Specifications — Operation modesSmartScan: Block, Manual (with automatic reference block calibration), Automated | SmartScan-FA: Block, Manual (with automatic reference block calibration), Automated, Stop on defect, Return on defect
SMARTSCAN System Specifications — PortsSmartScan: 3 – USB ports, HDMI or Display port, Ethernet port | SmartScan-FA: 3 – USB ports, HDMI or Display port, Ethernet port
SMARTSCAN System Specifications — PC computer setSmartScan: Wireless keyboard and mouse, monitor, system unit, special purpose software | SmartScan-FA: Wireless keyboard and mouse, monitor, system unit, special purpose software
SMARTSCAN System Specifications — Adapter setSmartScan: For wheels without hubs (p/n C20626200 (SAFRAN), p/n 3-1674 (GOODRICH) | SmartScan-FA: For wheels without hubs (p/n C20626200 (SAFRAN), p/n 3-1674 (GOODRICH)

Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
