TOFD 2.2 PRO Wireless System
Üretici ürün açıklaması
TOFD 2.2 PRO wireless ultrasonic weld testing equipment
TOFD 2.2 PRO Wireless System
8 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- TOFD Equipment
- Yöntem / ürün ailesi
Teknik Özellikler

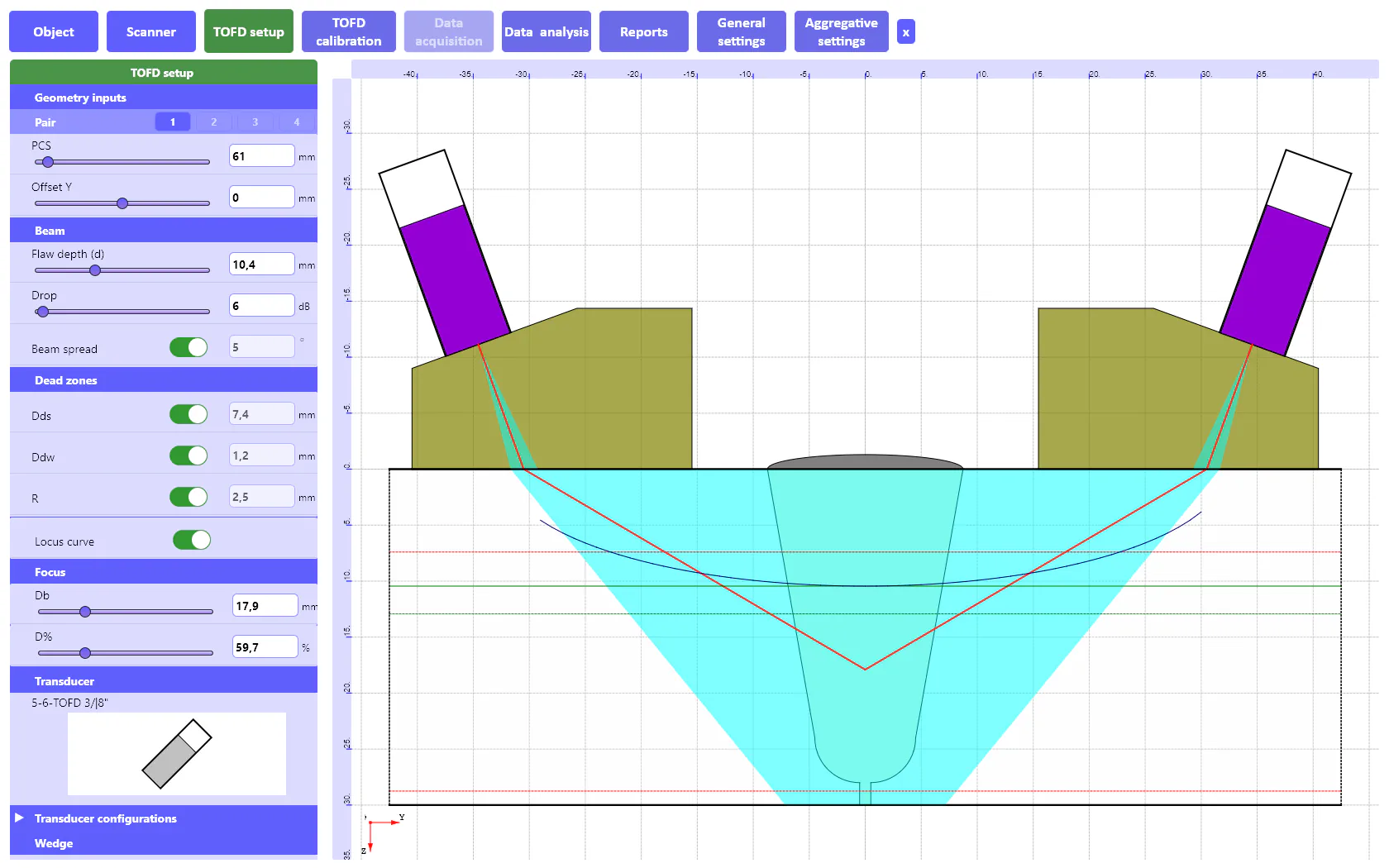

| TOFD transducers specification: — in | Frequency, MHz: mm | Element dia.: in | Object thickness: mm |
|---|---|
| TOFD transducers specification: — TWS10-3-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: .125 | Object thickness: 3 | Column 5: .390-.600 | Column 6: 10-15 |
| TOFD transducers specification: — TWS10-6-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: .250 | Object thickness: 6 | Column 5: .600-1.4 | Column 6: 15-35 |
| TOFD transducers specification: — * TWS5-6-TOFD 3/8" | Frequency, MHz: 5 | Element dia.: .250 | Object thickness: 6 | Column 5: 1.4-2.0 | Column 6: 15-50 |
| TOFD transducers specification: — TWS5-12-TOFD M16 | Frequency, MHz: 5 | Element dia.: .500 | Object thickness: 12 | Column 5: 2.0-4.0 | Column 6: 50-100 |
| TOFD transducers specification: — TWS3-12-TOFD M16 | Frequency, MHz: 3 | Element dia.: .500 | Object thickness: 12 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.5-12-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: .500 | Object thickness: 12 | Column 5: 8.0-6.0 | Column 6: 200-300 |
| TOFD transducers specification: — TWS2.25-12-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: .500 | Object thickness: 12 | Column 5: 8.0-6.0 | Column 6: 200-300 |
| TOFD transducers specification: — TWS3-8-TOFD M16 | Frequency, MHz: 3.0 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.5-8-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.25-8-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD wedges specification: — WS45 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 45 |
| TOFD wedges specification: — WS60 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 60 |
| TOFD wedges specification: — * WS70 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 70 |
| TOFD wedges specification: — WS45 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 45 |
| TOFD wedges specification: — WS60 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 60 |
| TOFD wedges specification: — WS70 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 70 |
| Testing objects parameters — Thicknesses | .25 - 2 in (6 - 50 mm) |

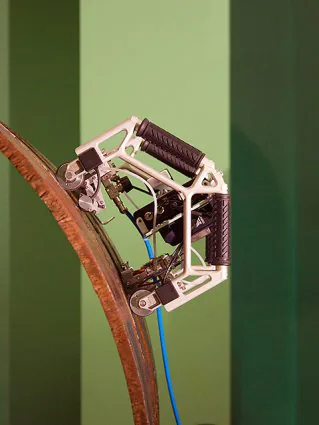

| Testing objects parameters — Diameter for cylindrical objects | from 12 in (300 mm) to flat |
| Testing objects parameters — Diameter for spherical objects | from 33 ft (10 m) to flat |
| Testing objects parameters — Profile types | any |

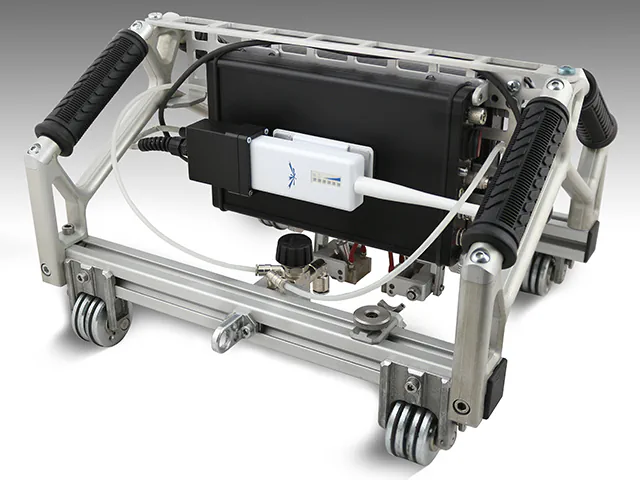

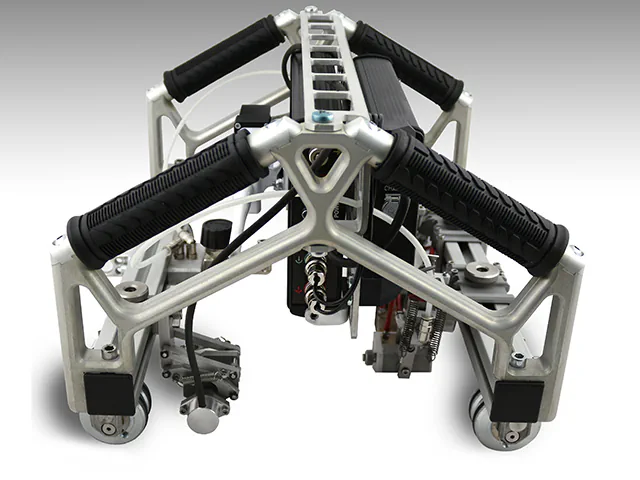

| Scanner (with all electronics onboard) — Dimensions (L×W×H) | 380×310×240 mm |
| Scanner (with all electronics onboard) — Weight | 7,5 kg |
| Scanner (with all electronics onboard) — Number of TOFD pairs | 1 |
| Scanner (with all electronics onboard) — Coupling liquid supply | individually for each probe |
| Compatible probes and wedges — Frequencies | 1-15 MHz |
| Compatible probes and wedges — Angles (L-wave) | 45°, 60°, 70° |
| Measurement — Number of cursors | 2 |
| Measurement — Types of cursors | Conventional (cross) Hyperbolic |
| Measurement — Manual positioning | ✔ |
| Measurement — Automatic positioning | ✔ |
| Measurement — Absolute measurements | ✔ |
| Measurement — Relative measurements | ✔ |
| Measurement — Indications table | ✔ |
| Measurement — Indications parameters | X, X 1 , X 2 , dX Z, Z 1 , Z 2 , dZ Type (Point, Top, Bottom, Middle,Volumetric) Amplitude |
| Measurement — Units | mm / in / us |
| Measurement — Output fields | 5 |
| Unit connectors — Pulser and Receiver | 2 × BNC |
| Unit connectors — Encoder | ✔ |
| Unit connectors — Power | ✔ |
| Unit connectors — RS485 | ✔ |
| Unit connectors — LAN | ✔ |
| Unit connectors — Sync input | ✔ |
| Unit connectors — Trigger output | ✔ |
| Pulser — Types | SWP |
| Pulser — Voltage (SWP) | 20 V, 30 V, 40 V, 50 V, 80 V, 100 V |
| Pulser — Energy (SWP) | 20 ns to 500 ns with 10 ns step Manual & Auto modes |
| Pulser — PRF | from 15 to 2000 Hz |
| Receiver — Range | Up to 100 us |
| Receiver — Delay | Up to 100 us |
| Receiver — Gain | 0 to 110 dB, with 0.1 dB step |
| Receiver — Max signal input | 20 V p-p |
| Receiver — Bandwidth | 0.2 MHz - 27 MHz |
| Receiver — Filters | 1 MHz, 2-3 MHz, 4-5 MHz, 10 MHz, 15 MHz, Full band |
| Receiver — Rectification | RF |
| Receiver — Signal Average | 2x / 4x / 8x / 16x / 32x |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
