Sonocon B Portable Ultrasonic Flaw Detector
Üretici ürün açıklaması

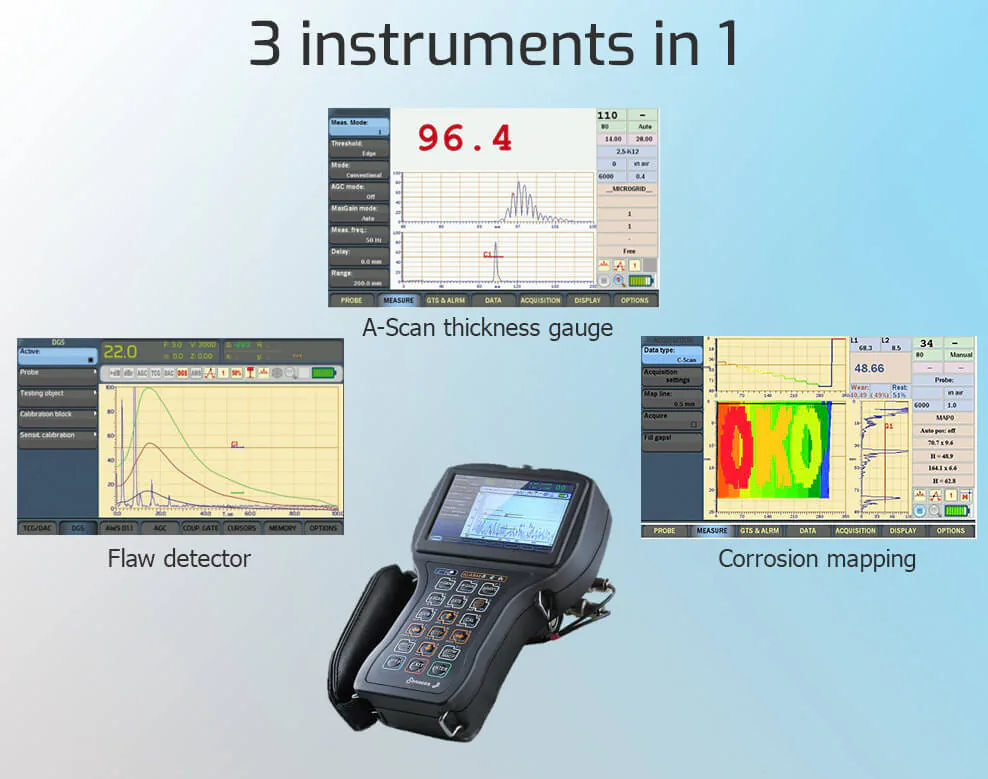

Portable Ultrasonic Flaw Detector Sonocon B is a digital UT tester combining 3 devices in 1: Flaw detector, A-Scan thickness gauge, Corrosion monitor

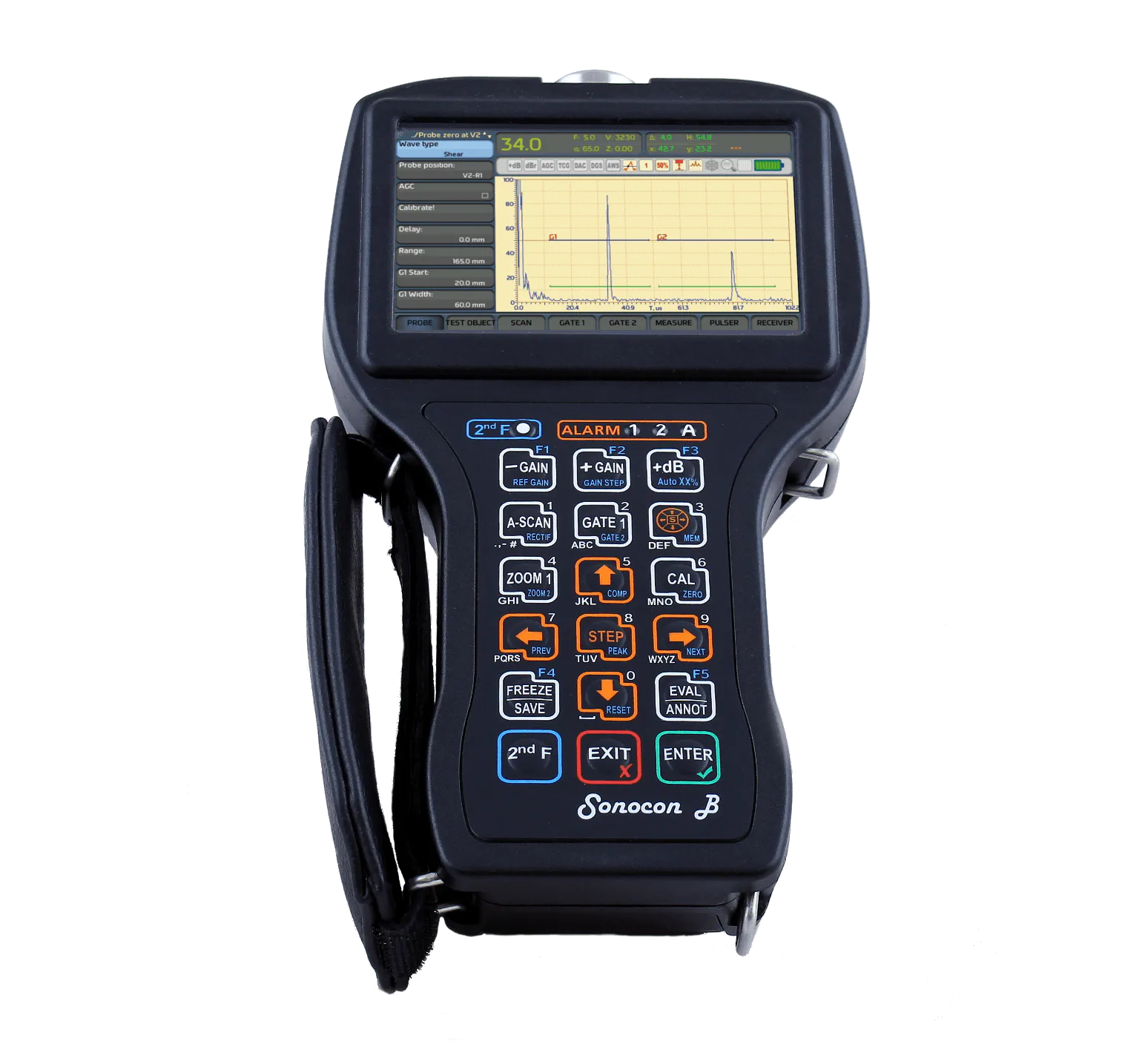

Sonocon B Portable Ultrasonic Flaw Detector
16 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic flaw detectors
- Yöntem / ürün ailesi
Teknik Özellikler

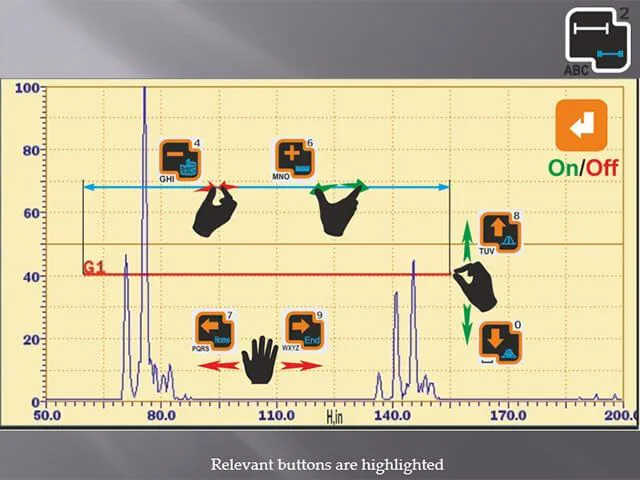

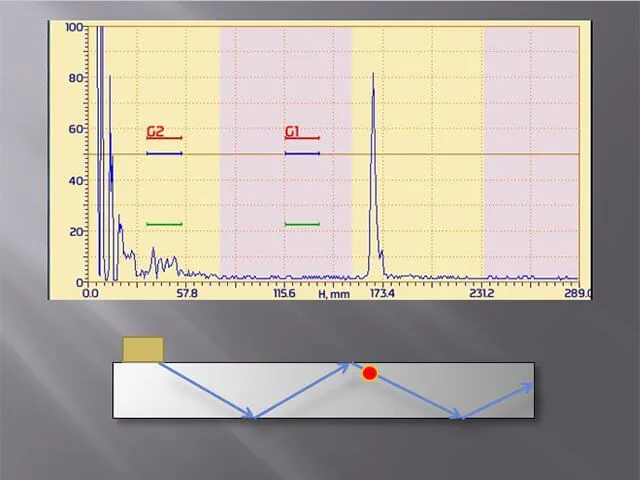

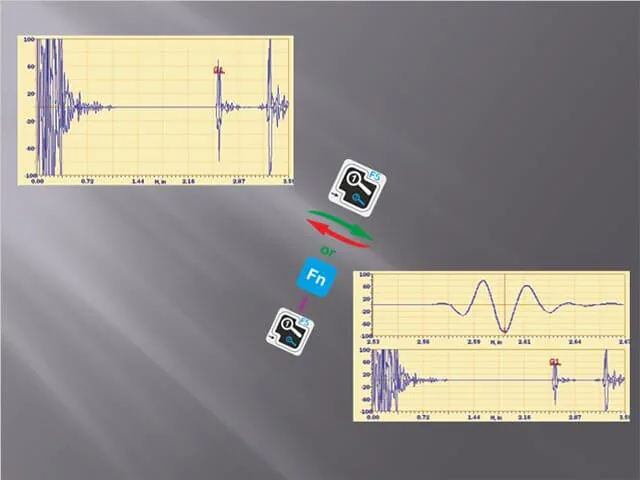

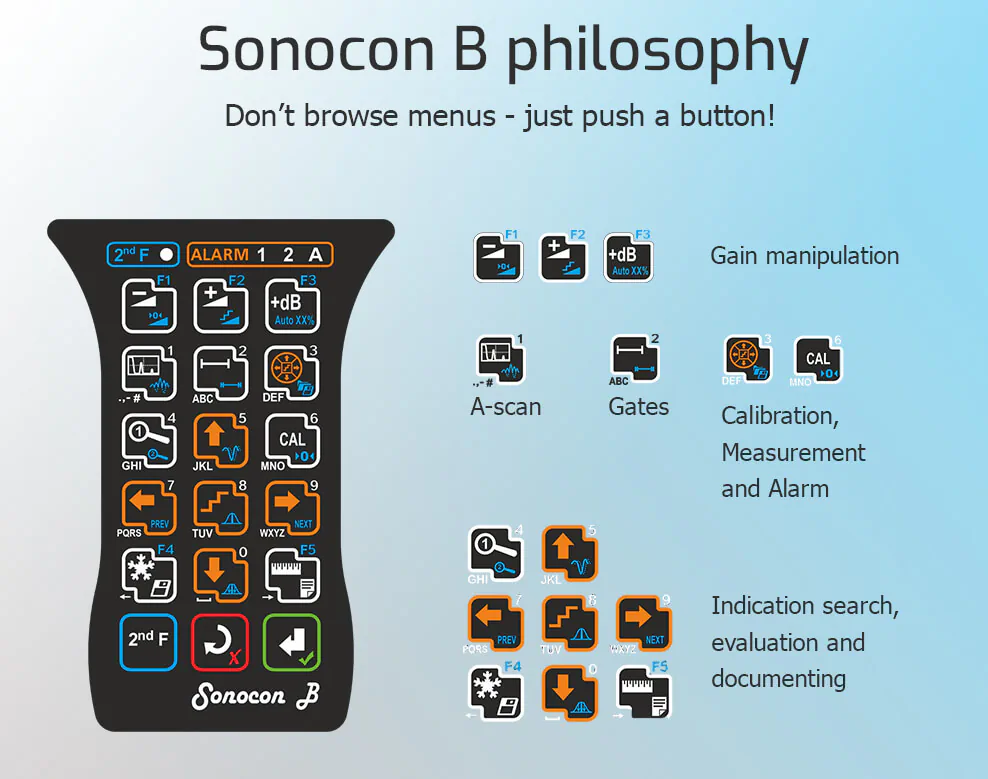

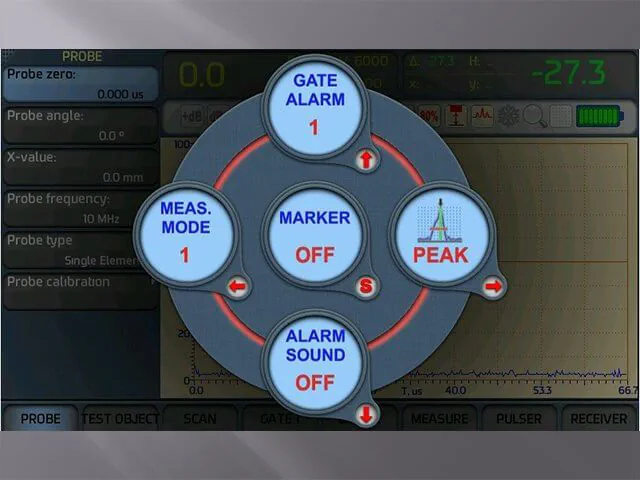

| Display — Size | 4.5” |
|---|---|
| Display — Resolution | 800×480 |
| Connectors — Probe connectors | 2 × BNC or 2 × LEMO-1 or 2 × LEMO-00 |
| Connectors — Analog output | Alarm |
| Connectors — USB 1 | Type A |
| Connectors — LAN | ✔ |
| Pulser — Types | Spike + Square Wave (SWP) |
| Pulser — Voltage (SWP) | 50 V, 100 V, 150 V, 200 V, 250 V, 300 V, 400 V |
| Pulser — Energy (SWP) | 20 ns to 1000ns with 10 ns step Manual & Auto modes |
| Pulser — Voltage (Spike) | Low: 50 V, High: 300 V |
| Pulser — Damping | ✔ |
| Pulser — PRF modes | Comfort, Low, Medium, High, Manual |
| Pulser — PRF | from 15 to 6000 Hz |
| Pulser — Phantoms control | 3 modes |
| Receiver — Range (at steel longitudinal wave) | 314 in(8 000 mm ) |
| Receiver — Gain | 0 to110 dB, with 0.1 dB step |
| Receiver — Max signal input | 20 V p-p |
| Receiver — Bandwidth | 0.2 MHz - 27 MHz |
| Receiver — Filters | 0.2-27 MHz, 0.2-10 MHz, 2.0-21.5 MHz, 8.0-26.5 MHz, 0.5-4 MHz, 0.2-1.2 MHz, 1.5-8.5 MHz, 5-15 MHz, 0.4 MHz, 0.5 MHz, 1 MHz, 1.25 MHz, 2 MHz, 2.25 MHz, 2.5 MHz, 3.5 MHz, 4 MHz, 5 MHz, 7.5 MHz, 10 MHz, 15 MHz, 20 MHz |
| Receiver — Filters set choice | ✔ |
| Receiver — Rectification | RF, FW, Pos. HW, Neg. HW |
| Receiver — TCG (TVG) | 110 dB; up to 110 dB/μs slope |
| Receiver — Signal Average | OFF / 2x / 4x / 8x / 16x / 32x / 64x |
| Receiver — Reject (cutoff) | 0-80% FSH |
| Measurement — Number of gates | 2 |
| Measurement — Number of cursors | 2 |
| Measurement — Modes | 1, 2, C1, C2, 1-2, 1-C1, 1-C2, 2-C1, 2-C2, C1-C2 |
| Measurement — TOF Modes | Peak, Edge (Flank) |
| Measurement — Amplitude measurement | up to 220% FSH |
| Measurement — Units | mm / in / us |
| Measurement — Output fields | 5 |
| Alarm — Number of gates | 2 |
| Alarm — Number of levels | 3 |
| Flaws evaluation — AWS | ✔ |
| Flaws evaluation — DGS (AVG) | ✔ |
| Flaws evaluation — DAC | ✔ |
| Flaws evaluation — DAC: Number of points | 128 |
| Flaws evaluation — DAC codes | ASME & ASME III, EN 1712, EN 1713, EN1714, JIS Z3060, GB11345, GB 4730 |
| Flaws evaluation — Custom DAC curves | up to 6 |
| Flaws evaluation — DAC 20-80 | ✔ |
| Flaws evaluation — DAC <=> TCG | ✔ |
| Memory — Setups | ✔ |
| Memory — Datasets (with A-Scans) | ✔ |
| Memory — Capacity | 2 GB (up to 64 GB) |
| Memory — PC software | ✔ |
| Other Features — Coupling control | ✔ |
| Other Features — AGC | independent for both gates |
| Other Features — Quick calibration | ✔ |
| Other Features — Quick evaluation (Best signal catch) | ✔ |
| Other Features — Auto XX % (50% or 80%) | ✔ |
| Other Features — Reference gain | ✔ |
| Other Features — Peak hold (collect, peak memory) | ✔ |
| Other Features — Signals compare | ✔ |
| Other Features — Smart zoom | ✔ |
| Other Features — Choice of menu systems | Full Simple 1 Simple 2 |
| Other Features — Keyboard backlight | ✔ |
| Other Features — Smart (Context) keyboard backlight | ✔ |
| Other Features — Number of keyboard shortcuts 2 | 41 |
| Physical — Dimensions | 9.5×4.4×5.3"(241×112×135 mm) |
| Physical — Weight incl. battery | 2 lbs (0.95 kg) |
| Physical — Operating temp. range | -22°F to 122°F (-30°C to 50°C) |
| Physical — Dust & water protection | IP65 |
| Physical — Battery life | 8 h |
| Physical — Replaceable battery | ✔ |
| Pulser — Type | Square Wave (SWP) |
| Pulser — Autofit of the pulser parameters to the chosen probe | Voltage, Energy, Damping |
| Pulser — Measurement frequency (readings refresh rate) | 1 to 100 Hz |
| Pulser — PRF mode | Auto (Calculated from set readings refresh rate, accounting for averaging rate) |
| Receiver — Range (at steel longitudinal wave) (2) | 314 in (8 000 mm) |
| Receiver — AGC | Individual to reach at 2 gates |
| Receiver — AGC Modes | OFF / Edge / Peak |
| Receiver — AGC Max Gain Modes | High, Medium, Low, Manual, Off |
| Receiver — Auto filters choice (according to the probe type) | ✔ |
| Measurement — Sound velocities range | .01 to .629 in/µs(250 to 16000 m/s ) |
| Measurement — Measurement range | .016 to .629 in (0.4 to 16 000 mm) |
| Measurement — Readings resolution | .001 / .01 / .1 in (0.01 / 0.1 / 1 mm) |
| Measurement — Number of gates (2) | 2 |
| Measurement — Modes (2) | 1, 1-2 |
| Measurement — TOF Modes (2) | Edge, Edge Zero Crossing |
| Measurement — Units (2) | mm / in |
| Measurement — Min & Max capture mode | ✔ |
| Measurement — Differential mode | ✔ |
| Measurement — % of wear mode | ✔ |
| Measurement — Temperature compensation | ✔ |
| Measurement — Acquisition of a: Thickness B-Scan Thickness C-Scan | ✔ ✔ |
| Measurement — Measurements on the previously acquired: Thickness B-Scan Thickness C-Scan | ✔ ✔ |
| Alarm & Display — Alarm types | Min, Max, Min&Max |
| Alarm & Display — Coupling loss alarm | ✔ |
| Alarm & Display — Last reading (in coupling loss) | ✔ |
| Alarm & Display — A-Scan | ✔ |
| Alarm & Display — Cursor (Detect Line) | ✔ |
| Alarm & Display — Thickness B-Scan | ✔ |
| Alarm & Display — Thickness C-Scan | ✔ |
| Alarm & Display — Multidimensional files: Browsing | ✔ |
| Alarm & Display — Multidimensional files: File Statistics | ✔ |
| Alarm & Display — Multidimensional files Meas. Site Statistics | ✔ |
| Calibration — 1-point | ✔ |
| Calibration — 2-points | ✔ |
| Calibration — Zeroing in the air | ✔ |
| Calibration — Zeroing on a built-in block | ✔ |
| Memory — Setups (2) | ✔ |
| Memory — Multidimensional structured files | 1-3 dim |
| Memory — Number of readings per file | Up to 100 000 |
| Memory — Number of files format | 6 |
| Memory — Data attachments | Comments, A-Scans, Thickness B-Scans, Thickness C-Scans, Microgrids |
| Memory — Capacity (2) | 2 GB (up to 64 GB) |
| Memory — PC software (2) | ✔ |
| Other Features — Keyboard backlight (2) | ✔ |
| Other Features — Smart (Context) keyboard backlight (2) | ✔ |
| Other Features — Smart zoom (2) | ✔ |
| Other Features — Number of keyboard shortcuts 2 (2) | 29 |
| Electronic unit | 1 |
| Piezoelectric transducer:TSD5-10 | 1 |
| Connection cable probe / Electronic unit (2lemo00×2 BNC) | 1 |
| Mascot Type 2542 Charger | 1 |
| Hand strap | 1 |
| Software for processing the testing results on PC “Thickness gauge +” and “UT” | 1 |
| Battery unit | 1 |
| Bag or Case | 1 |
| Documentation — Operating manual for Sonocon B version "UT" | 1 copy |
| Documentation — Operating manual for Sonocon B version “Thickness gauge +” | 1 copy |
| Documentation — Operating manual for PC software for version “UT” | 1 copy |
| Documentation — Operating manual for PC software for version “Thickness gauge +” | 1 copy |
| Documentation — Operating manual for Mascot charger | 1 copy |
| Electronic unit (2) | 1 |
| Mascot Type 2542 Charger (2) | 1 |
| Hand strap (2) | 1 |
| Software for processing the testing results on PC "UT" | 1 |
| Battery unit (2) | 1 |
| Bag or Case (2) | 1 |
| Documentation — Operating manual for Sonocon B version “UT” | 1 copy |
| Documentation — Operating manual for PC software for version “UT” (2) | 1 copy |
| Documentation — Operating manual for Mascot charger (2) | 1 copy |
| Electronic unit (3) | 1 |
| Piezoelectric transducer:TSD5-10 (2) | 1 |
| Connection cable probe / Electronic unit (2lemo00×2 BNC) (2) | 1 |
| Mascot Type 2542 Charger (3) | 1 |
| Hand strap (3) | 1 |
| Software for processing the testing results on PC “Thickness gauge +” | 1 |
| Battery unit (3) | 1 |
| Bag or Case (3) | 1 |
| Documentation — Operating manual for Sonocon B version “Thickness gauge +” (2) | 1 copy |
| Documentation — Operating manual for PC software for version “Thickness gauge +” (2) | 1 copy |
| Documentation — Operating manual for Mascot charger (3) | 1 copy |
