Ultrasonic flaw detectors produced by OKOndt GROUP

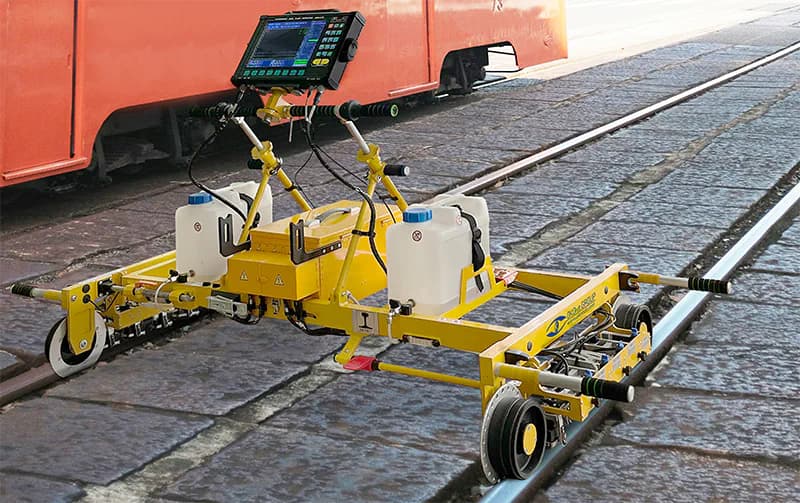

UDS2-73 SL and TRAM
13 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic flaw detectors
- Yöntem / ürün ailesi
Teknik Özellikler

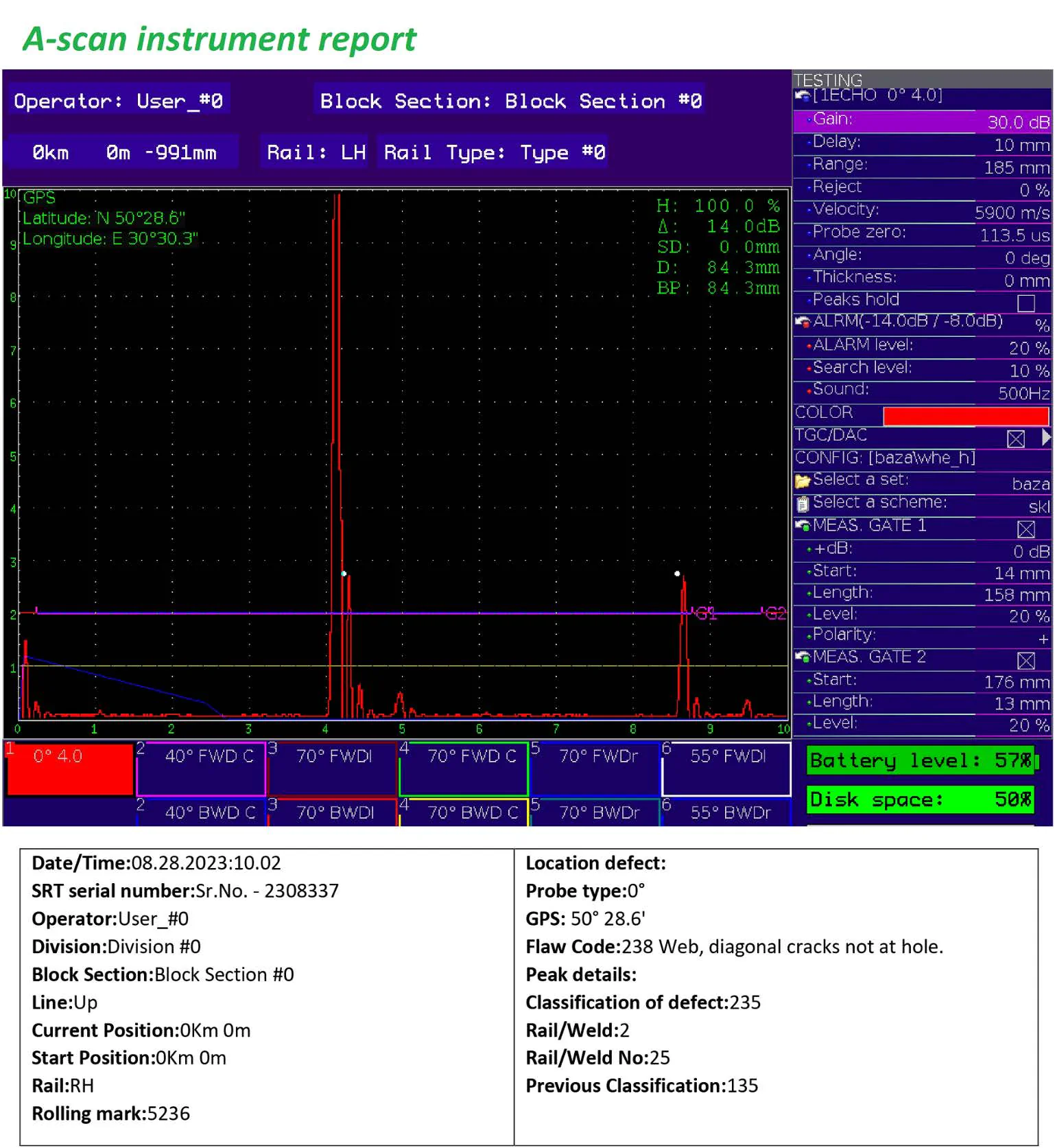

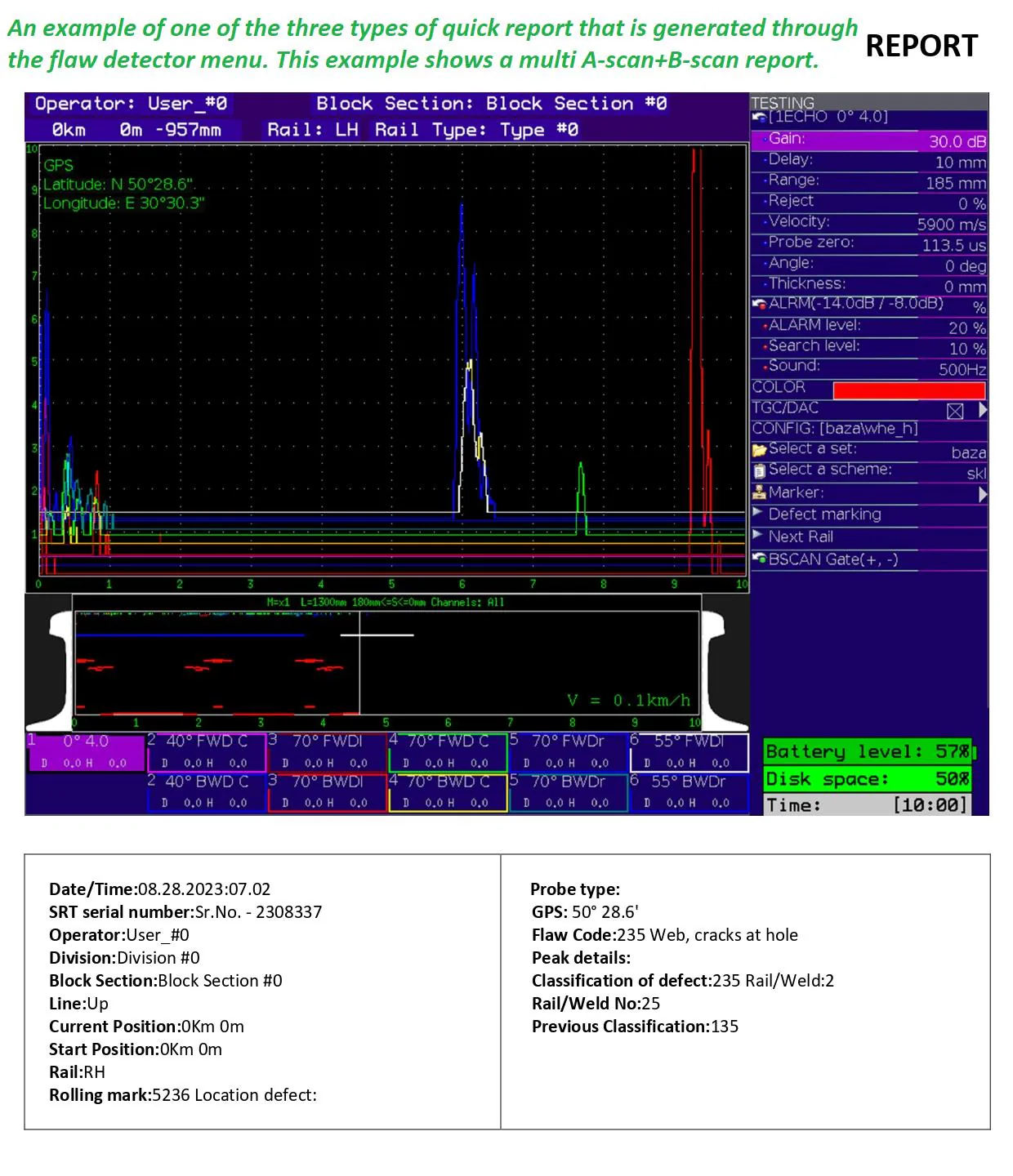

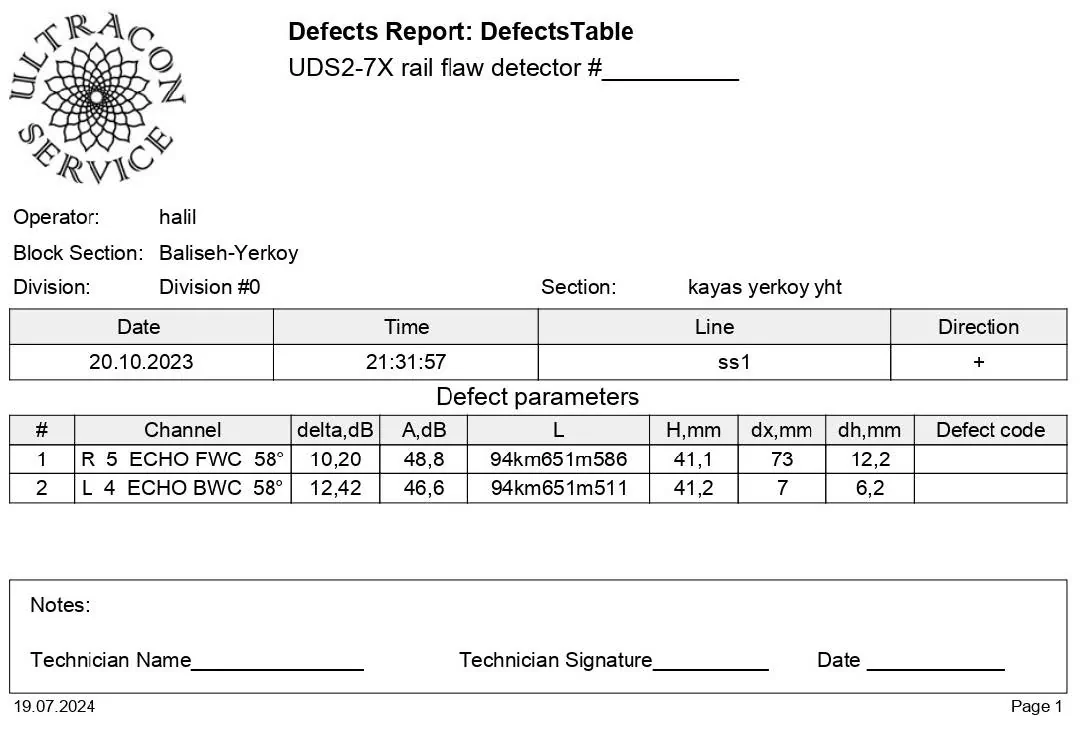

| REPORTS — 1 | DESCRIPTION: Frame - 1 pc; Wheel - 2 pcs; Wheel with brake - 1 pc; Measuring wheel (with encoder) - 1 pc; Lifting scanner device - 1 pc; Track gauge adaptation mechanism - 2 pc; Left tracer - 1 pc; Right tracer - 1 pcs; Right clarifier - 1 pc; Left clarifier - 1 pc. | QUANTITY: 1 set. |
|---|---|
| REPORTS — 2 | DESCRIPTION: UT Multiplexer unit (MUX) | QUANTITY: 4 pcs. | NOTE: They are placed in a special center box (in the center of the frame) or distributed within the horizontal plane of the flaw detector frame. |

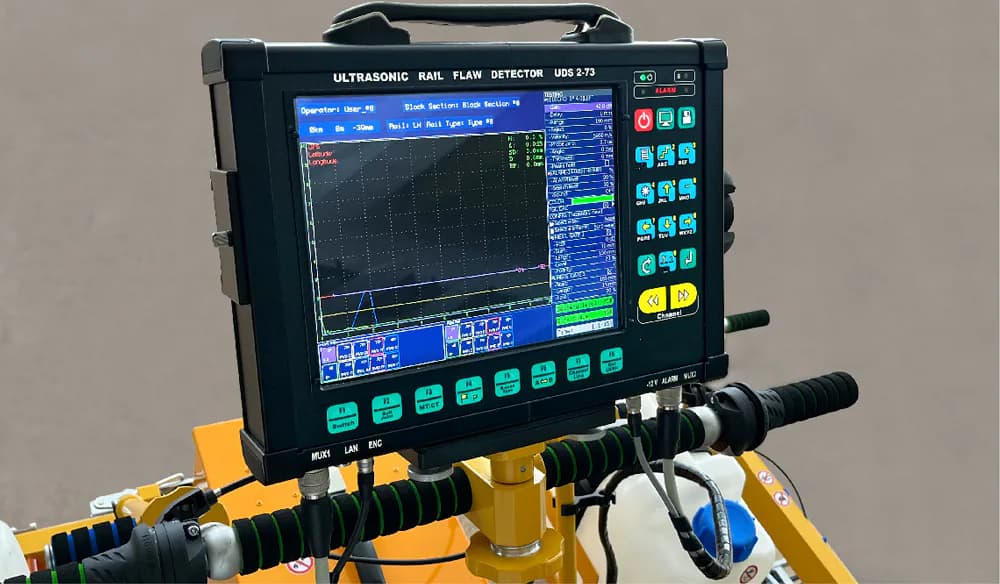

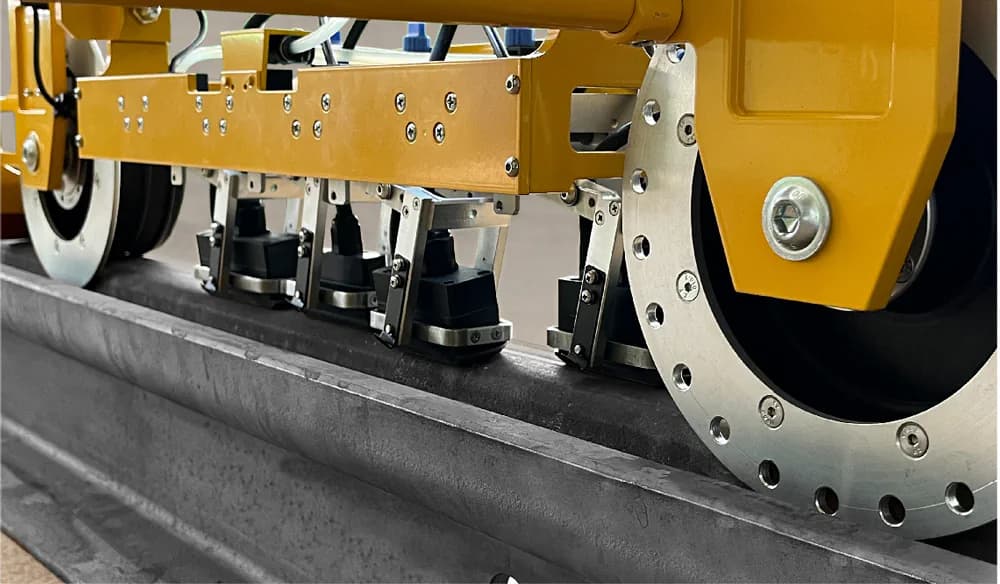

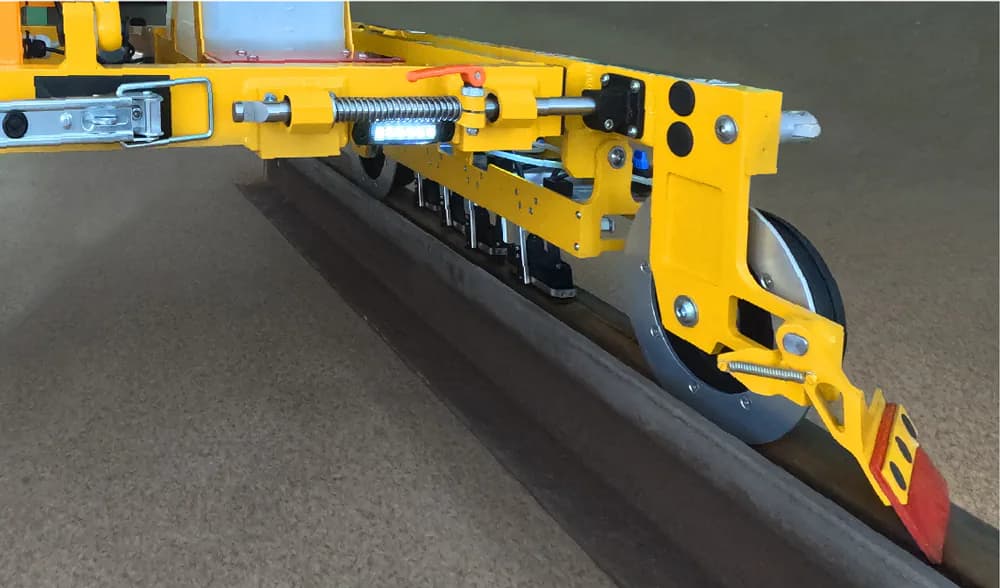

| REPORTS — 3 | DESCRIPTION: Electronic Unit (EU) | QUANTITY: 1 pc. | NOTE: Central electronic unit with monitor for displaying inspection results. |
| REPORTS — 4 | DESCRIPTION: Protection cover for screen (EU) | QUANTITY: 1 pc. | NOTE: Protective pad, used in transport mode |
| REPORTS — 5 | DESCRIPTION: Sunlight protection | QUANTITY: 1 pc. | NOTE: The three-sided overlay attaches around the perimeter of the display. Improves screen readability in bright light. |
| REPORTS — 6 | DESCRIPTION: Power Supply Unit | QUANTITY: 1 pc. | NOTE: Electrical component that distributes power |
| REPORTS — 7 | DESCRIPTION: Battery (Ni-MH) | QUANTITY: 1 pc. |
| REPORTS — 8 | DESCRIPTION: Charger device | QUANTITY: 1 pc. |
| REPORTS — 9 | DESCRIPTION: Stereo headphones with volume control | QUANTITY: 1 pc. |
| REPORTS — 10 | DESCRIPTION: Tank for liquid. | QUANTITY: 2 pcs. | NOTE: Plastic canister 10 liters with pre-installed fittings and flow control valves |
| REPORTS — 11 | DESCRIPTION: GNNS module (Detection and fixing of defect coordinates with display in the inspection results) | QUANTITY: 1 pc. | NOTE: Option. Not enabled by default. |
| REPORTS — 12 | DESCRIPTION: USB-flash card | QUANTITY: 1 pc. | NOTE: + set of technical and operational documentation |
| REPORTS — 13 | DESCRIPTION: Left Scanner / Right Scanner | QUANTITY: 2 pcs. |
| REPORTS — 14 | DESCRIPTION: Probe Unit #1 (right/left): 4.0 MHz straight beam (0°) dual element probe 1 pc; 2.0 MHz angle beam (70°) single element probe 2 pc (d=24mm). | QUANTITY: 2 pcs. |
| REPORTS — 15 | DESCRIPTION: Probe Unit #2 (right/left): 2.0 MHz angle beam (40°) single element probe (two probes in one housing) 1 pc; 2.0 MHz angle beam (55°) single element probe (two probes in one housing) 1 pc. | QUANTITY: 2 pcs. | NOTE: Optional. Not included in basic delivery set. |
| REPORTS — 16 | DESCRIPTION: Probe Unit #3 (right/left): 2.0 MHz angle beam (70°) single element probe 2 pc; | QUANTITY: 2 pcs. |
| REPORTS — 17 | DESCRIPTION: Probe Unit #4 (right/left): 2.0 MHz angle beam (70°) single element probe 2 pc. | QUANTITY: 2 pcs. |
| REPORTS — 18 | DESCRIPTION: Probe Unit #5 (right/left): 4.0 MHz straight beam (0°) dual element probe (Ø10 mm) 1 pc; 2.0 MHz angle beam (40°) single element probe (Ø10 mm) 2 pc. | QUANTITY: 2 pcs. | NOTE: PU#5 is installed in the scanner by default. This probe unit is used for inspection of grooved rails and is located in probe unit #2 |
| REPORTS — 19 | DESCRIPTION: Probes for manual testing: TSD4 20 - 1 pc. TAB2 40 14x14 - 1 pc. TAB2 55 14x14 - 1 pc. TAB2 70 14x14 - 1 pc. | QUANTITY: 1 set |
| REPORTS — 20 | DESCRIPTION: Flexible tube for coupling | QUANTITY: 1 set |
| REPORTS — 21 | DESCRIPTION: Cable Set: Connection cable (probe multiplexer unit)(lemo00 2BNC) - 2 pc; Connection cable (probe multiplexer unit)(2×lemo 2BNC) - 1 pc; Power cable - 1 set; Connection cable (multiplexer unit electronic unit) - 2pc. LAN debugging cable - 1 pc. | QUANTITY: 1 pc. |
| REPORTS — 22 | DESCRIPTION: Calibration block (CB) | QUANTITY: 1 pc. |
| REPORTS — 23 | DESCRIPTION: A set of tools for maintenance | QUANTITY: 1 set.. |
| REPORTS — 24 | DESCRIPTION: Integrated lighting of the inter-rail space and scanners | QUANTITY: 1 set. | NOTE: Optional. Not included in basic delivery set |
| REPORTS — 25 | DESCRIPTION: Integrated main directional lighting (on a bar) | QUANTITY: 1 set | NOTE: Optional. Not included in basic delivery set |
| REPORTS — 26 | DESCRIPTION: Operating documentation: Operating Manual - 1 pc; Passport - 1 pc; Passport CB - 1 pc; Operating manual for software “RailI inspector” - 1 pc; Maintenance and repair manual - 1 pc; Operating Manual for charger - 1 pc. | QUANTITY: 1 set |
| REPORTS — 27 | DESCRIPTION: Calibration certificate | QUANTITY: 1 pc. | NOTE: Optional. Not included in basic delivery set |
| REPORTS — 28 | DESCRIPTION: Spare Parts: Battery | QUANTITY: 1 set. | NOTE: Optional. Not included in basic delivery set |
| REPORTS — 29 | DESCRIPTION: Container packing (wooden box) | QUANTITY: 1 pc. |
