UDS2-73 SWP
Üretici ürün açıklaması
Ultrasonic flaw detectors produced by OKOndt GROUP
UDS2-73 SWP
9 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic flaw detectors
- Yöntem / ürün ailesi
Teknik Özellikler

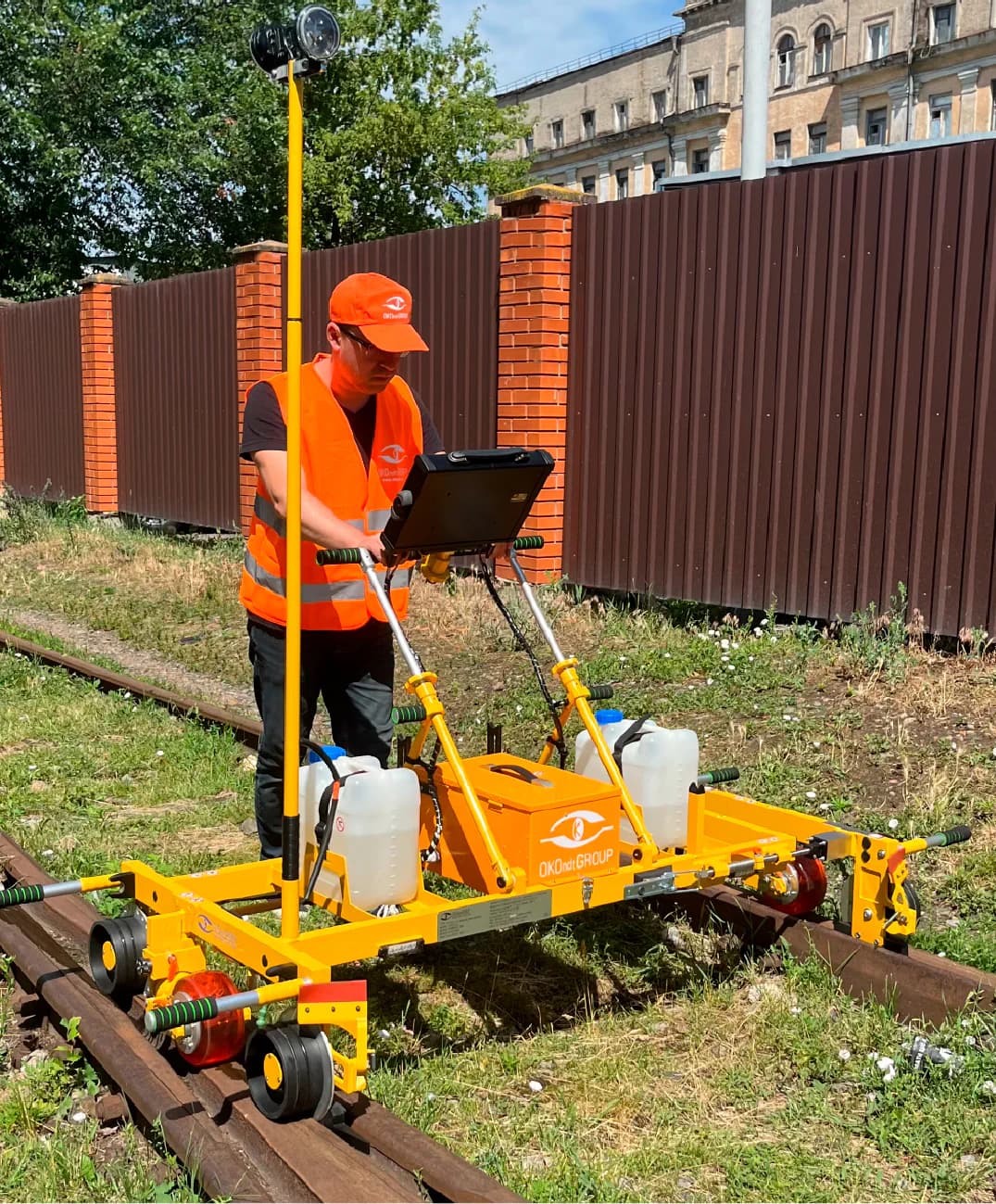

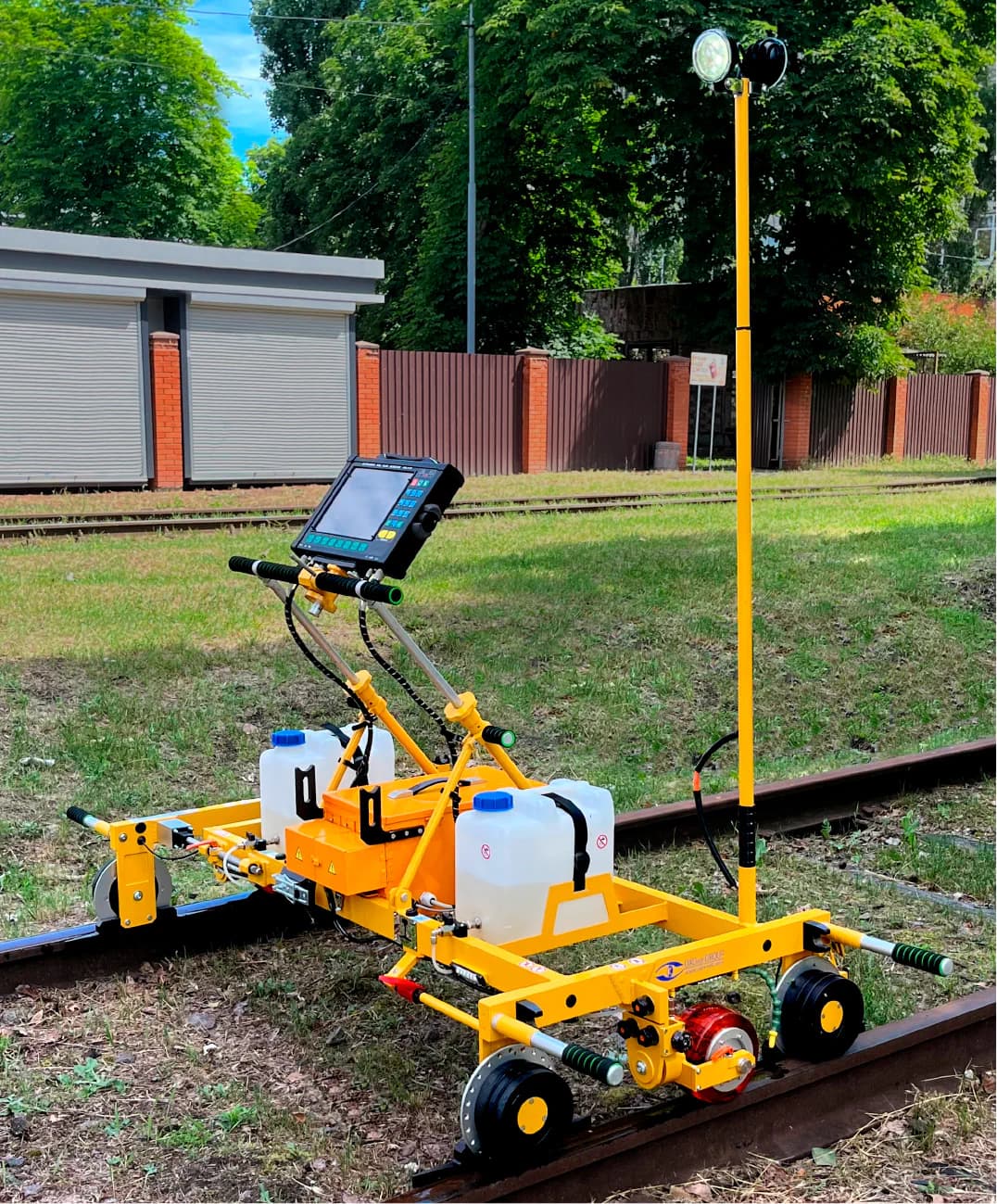

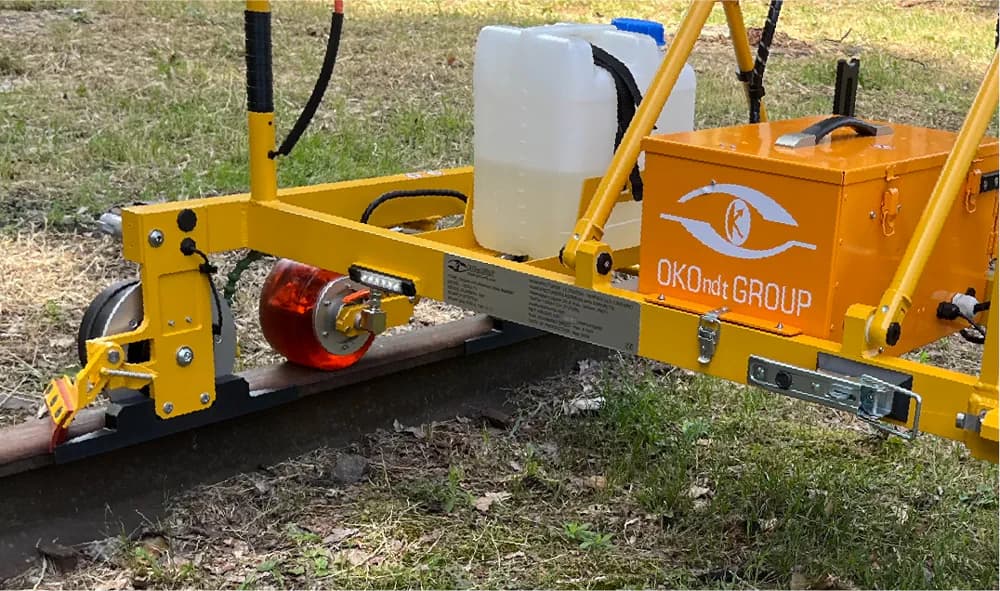

| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 1 | DESCRIPTION: Trolley’s composed of: Frame - 1 pc; Wheel - 2 pcs; Wheel with brake - 1 pc; Measuring wheel (with encoder) - 1 pc; Lifting device - 1 pc; Left tracer - 1 pc; Right tracer - 1 pc; Basket - 2 pcs; Right clarifier - 1 pc; Left clarifier - 1 pc. | QUANTITY: 1 set. |
|---|---|
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 2 | DESCRIPTION: UT Multiplexer unit (MUX) | QUANTITY: 4 pcs. |

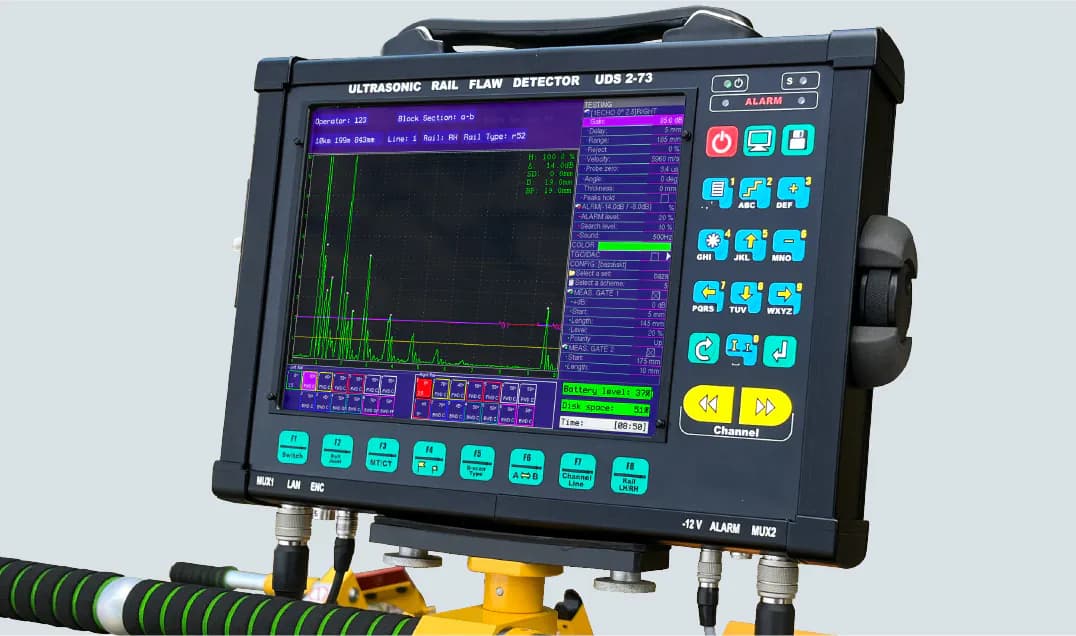

| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 3 | DESCRIPTION: Electronic Unit (EU) | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 4 | DESCRIPTION: Protection cover for screen (EU) | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 5 | DESCRIPTION: Sunlight protection | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 6 | DESCRIPTION: Power Supply Unit | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 7 | DESCRIPTION: Battery (Ni-MH) | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 8 | DESCRIPTION: Charger device | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 9 | DESCRIPTION: Headphone | QUANTITY: 1 pc. |

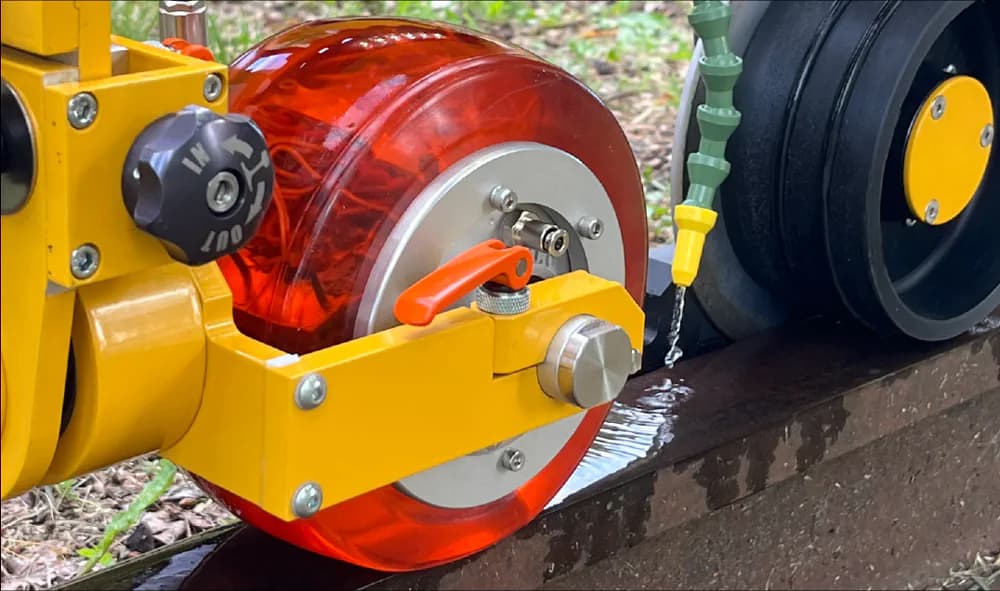

| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 10 | DESCRIPTION: The search wheel with immersion ultrasonic probes (SWP) comes complete with the following probes for one SWP: 4.0 MHz straight-beam (00) immersion probe - 1 pc; 2 MHz angle-beam (70°) immersion probe (3 crystals in one housing) - 2 pc; 2 MHz angle-beam (40°) immersion probe - 2 pc; 2 MHz angle-beam (55°) immersion probe (Side looking) - 2 pc. | QUANTITY: 2 pcs. | Column 4: The number of probes in the search wheel and the input angles can be changed at the request of the customer. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 11 | DESCRIPTION: Contact fluid supply system: Nozzle - 2 pc; A set of connecting tubes - 1 set; Plastic canister with a capacity of 10 liters - 2 pc; Faucet for adjusting the supply of contact fluid - 2 pc. | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 12 | DESCRIPTION: Connecting and service cables as part of: Connecting cable type #1 - 2 pcs; Connecting cable type #2 - 2 pcs; Connection cable (probe-multiplexer)(lemo00 - 2BNC) - 2 pcs; Cable power supply #1,#2,#3,#5,#6,#9 - 6 pcs; Battery adapter cable (Ni-MH) - 1 pc; Cable «Ethernet» - 1 pc; Connection cable (multiplexer unit-electronic unit) - 2 pcs; Cable LAN - 1 pc. | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 13 | DESCRIPTION: A set of manual UT probes: 00 - 4 MHz (TSD4-20) - 1 pc; 400 - 2 MHz (TAB2-400-14x14) - 1 pc; 550 - 2 MHz (TAB2-550-14x14) - 1 pc; 700 - 2 MHz (TAB2-700-14x14) - 1 pc. | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 14 | DESCRIPTION: Integrated lighting of the inter-rail space and scanners | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 15 | DESCRIPTION: Integrated main directional lighting (on a bar) | QUANTITY: 1 set | Column 4: Option. Not included in the basic set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 16 | DESCRIPTION: Special calibration unit, rail fragment with artificial defects according to EN16729-1, with SWP fixation and handling device. | QUANTITY: 1 set | Column 4: Option. Not included in the basic set. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 17 | DESCRIPTION: Installation for measuring the velocity of ultrasound: - Speed measuring device; - WP-0-4-M-01 UT probe; - BNC-M5 cable | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 18 | DESCRIPTION: Hand pump for filling SWP | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 19 | DESCRIPTION: USB flash card (16 Gb) | QUANTITY: 1 pc. | Column 4: + set of technical and operational documentation |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 20 | DESCRIPTION: Box for storage and transportation with rollers | QUANTITY: 1 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 21 | DESCRIPTION: A set of technical and operational documentation includes: Operating manua - 1 pc; Operating manual for software “RailInspector” - 1 pc; Maintenance and repair manual - 1 pc; Operating Manual for charger - 1 pc; Wheel Maintenance manual - 1 pc; Passport (Registration Certificate) - 1 pc; | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 22 | DESCRIPTION: Calibration certificate | QUANTITY: 1 pc |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23 | DESCRIPTION: Spare Parts: |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23.1 | DESCRIPTION: Polyurethane casing for measuring wheel | QUANTITY: 2 pcs. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23.2 | DESCRIPTION: Tube for liquid with nozzle (Nozzle) | QUANTITY: 2 pc. |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23.3 | DESCRIPTION: Battery (Ni-MH) | QUANTITY: 1 pc. | Column 4: Option. Not included in the basic set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23.4 | DESCRIPTION: Tools for maintenance | QUANTITY: 1 set |
| Ultrasonic B-Scan + A-Scan Test report UDS2-77 #2304333 — 23.5 | DESCRIPTION: Fuses | QUANTITY: 5 pcs. |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
