UDS2-77 Ultrasonic Single Rail Flaw Detector
Üretici ürün açıklaması

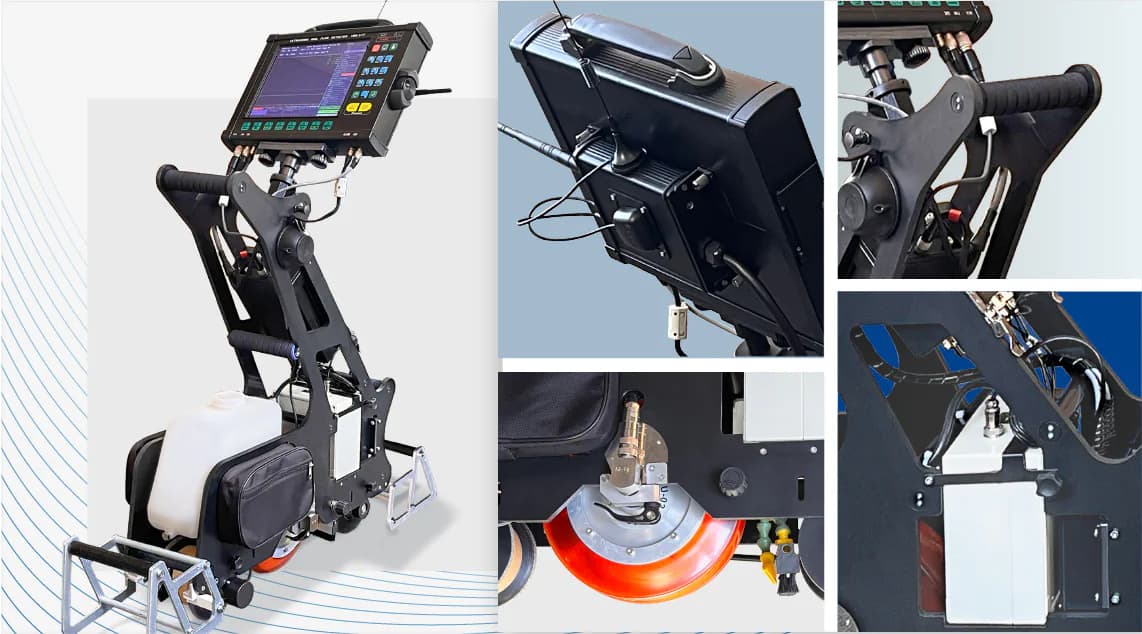

UDS2-77 ultrasonic single rail flaw detector is a mechanized trolley intended for the inspection of one rail line.
UDS2-77 Ultrasonic Single Rail Flaw Detector
21 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic flaw detectors
- Yöntem / ürün ailesi
Teknik Özellikler
| UDS2-77 AREMA (SWP) | UDS2-77 AREMA (SL) |
|---|---|
| Provides testing of rails in accordance with AREMA requirements | Provides testing of rails in accordance with AREMA requirements |

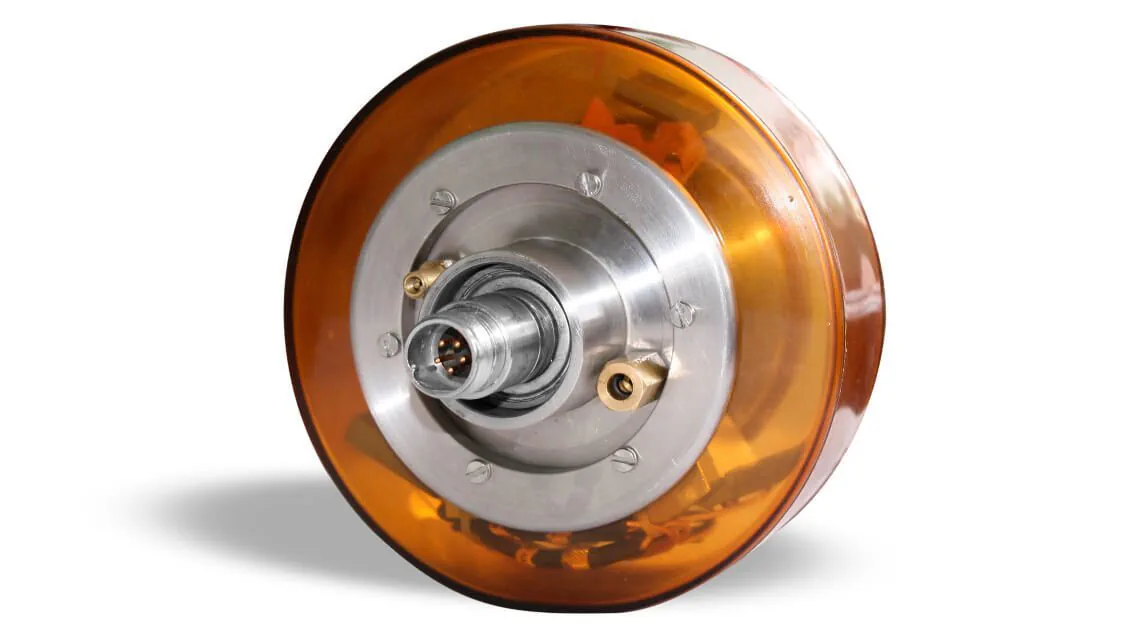

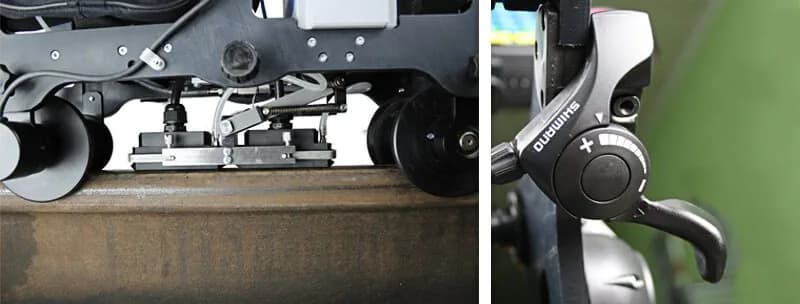

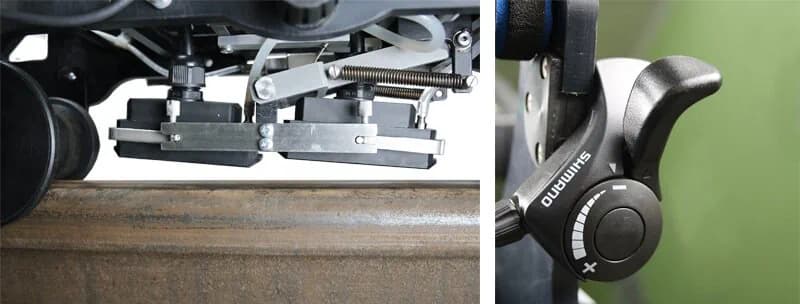

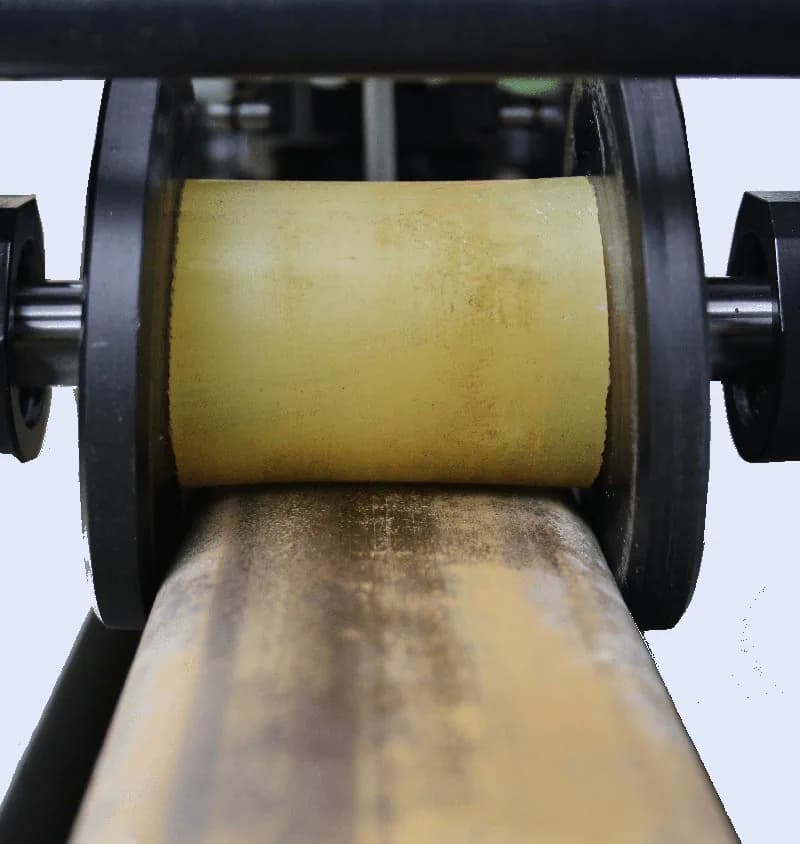

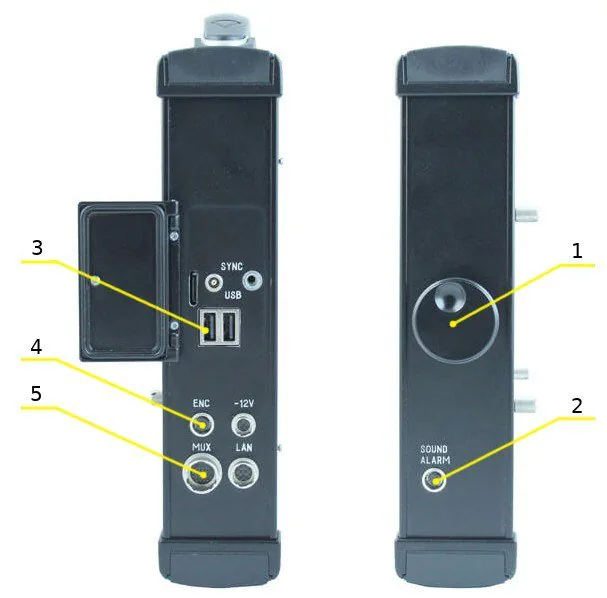

| The immersion probe unit design is the search wheel (SWP). | Sliding probe unit design (4 sliding blocks) |
| Number of ultrasonic probes - 11 | Number of ultrasonic probes - 11 |
| 0°-4 M Hz | 0°-4 MHz |
| 70°-2 M Hz (Head Central Forward) | 70°-2 MHz (Head Central Forward) |
| 70°-2 M Hz (Head Central Backward) | 70°-2 MHz (Head Central Backward) |
| 70°-2 M Hz (Head Gauge Face Forward) | 70°-2 MHz (Head Gauge Face Forward) |
| 70°-2 M Hz (Head Gauge Face Backward) | 70°-2 MHz (Head Gauge Face Backward) |
| 70°-2 M Hz (Head Field Face Forward) | 70°-2 MHz (Head Field Face Forward) |
| 70°-2 M Hz (Head Field Face Backward) | 70°-2 MHz (Head Field Face Backward) |
| 2x40°- 2 M Hz (Web, Foot Forward / Backward) | 2x45°- 2 MHz (Web, Foot Forward / Backward) |
| 2x50°- 2 M Hz (Head Side Looking) | 2x50°- 2 MHz (Head Side Looking) |
| Type#1 (Advanced version) — 1 | Description: Trolley | Q,ty, pcs.: 1 pc. | Notes: Composition according to specification |
| Type#1 (Advanced version) — 2 | Description: System of couplant supply to probe units | Q,ty, pcs.: 1 set | Notes: Included as a part of trolley |
| Type#1 (Advanced version) — 2.1 | Description: - tank | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 2.2 | Description: - tubes | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 2.3 | Description: - distributors | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 3 | Description: Electronic unit | Q,ty, pcs.: 1 pc. | Notes: Included as a part of trolley |
| Type#1 (Advanced version) — 4 | Description: Multichannel unit (MUX) | Q,ty, pcs.: 1 pcs. | Notes: Included as a part of trolley |
| Type#1 (Advanced version) — 5 | Description: Power switching unit | Q,ty, pcs.: 1 pc. | Notes: Included as a part of trolley |

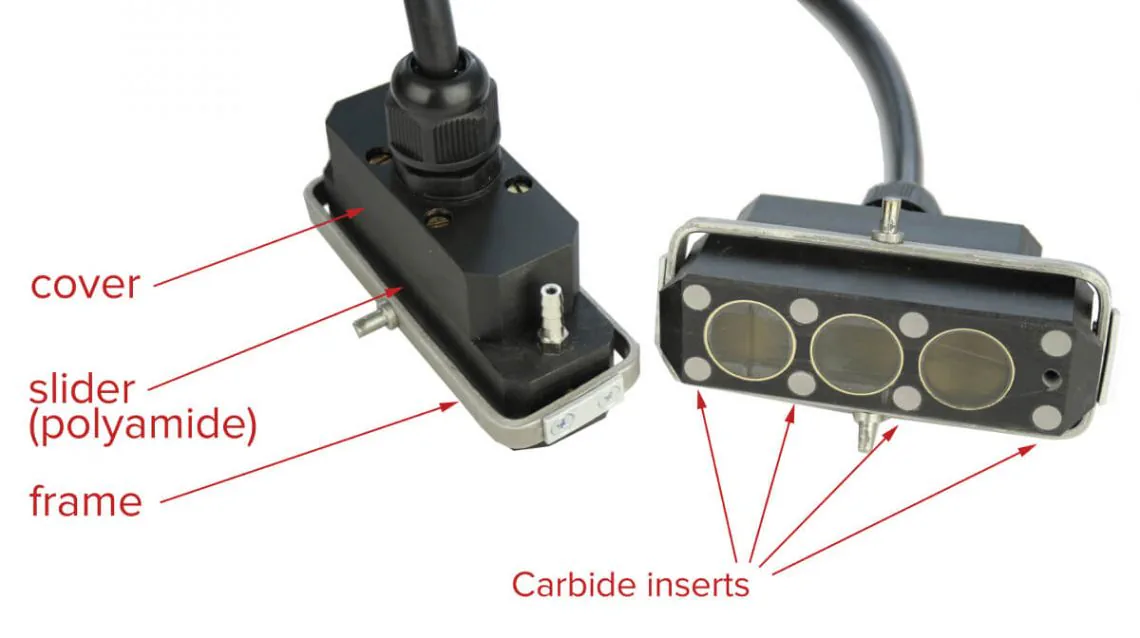

| Type#1 (Advanced version) — 6 | Description: Probe unit | Q,ty, pcs.: 2 pcs. | Notes: Included as a part of trolley |
| Type#1 (Advanced version) — 7 | Description: Battery pack | Q,ty, pcs.: 2 pcs. | Notes: 1 pc. included as a part of trolley |
| Type#1 (Advanced version) — 8 | Description: Charger | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 9 | Description: Manual probe TSD4-20 | Q,ty, pcs.: 1 pc. | Notes: Manual testing |
| Type#1 (Advanced version) — 10 | Description: Manual probe TAB2-45-14x14 | Q,ty, pcs.: 1 pc. | Notes: Manual testing |
| Type#1 (Advanced version) — 11 | Description: Manual probe TAB2-70-14x14 | Q,ty, pcs.: 1 pc. | Notes: Manual testing |
| Type#1 (Advanced version) — 13 | Description: Connecting cable from multichannel unit (MUX) to probe (BNC-2xBNC) | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 14 | Description: Connecting cable from multichannel unit (MUX) to probe (BNC-2x238) | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 15 | Description: Calibration block | Q,ty, pcs.: 1 pc. | Notes: Type of calibration block according to applicable regulatory documents or Customer’s requirements |
| Type#1 (Advanced version) — 16 | Description: Tools and accessories | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 17 | Description: Spare parts | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 18 | Description: USB flash drive | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 19 | Description: Application-dependent software | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 20 | Description: Carrying case for transportation and storage | Q,ty, pcs.: 1 pc. |
| Type#1 (Advanced version) — 21 | Description: Operational documentation | Q,ty, pcs.: 1 set |
| Type#1 (Advanced version) — 22 | Description: Case bag | Q,ty, pcs.: 1 pc. |
