USR-01 Kit Testing Of Rail Welded Joints
Üretici ürün açıklaması

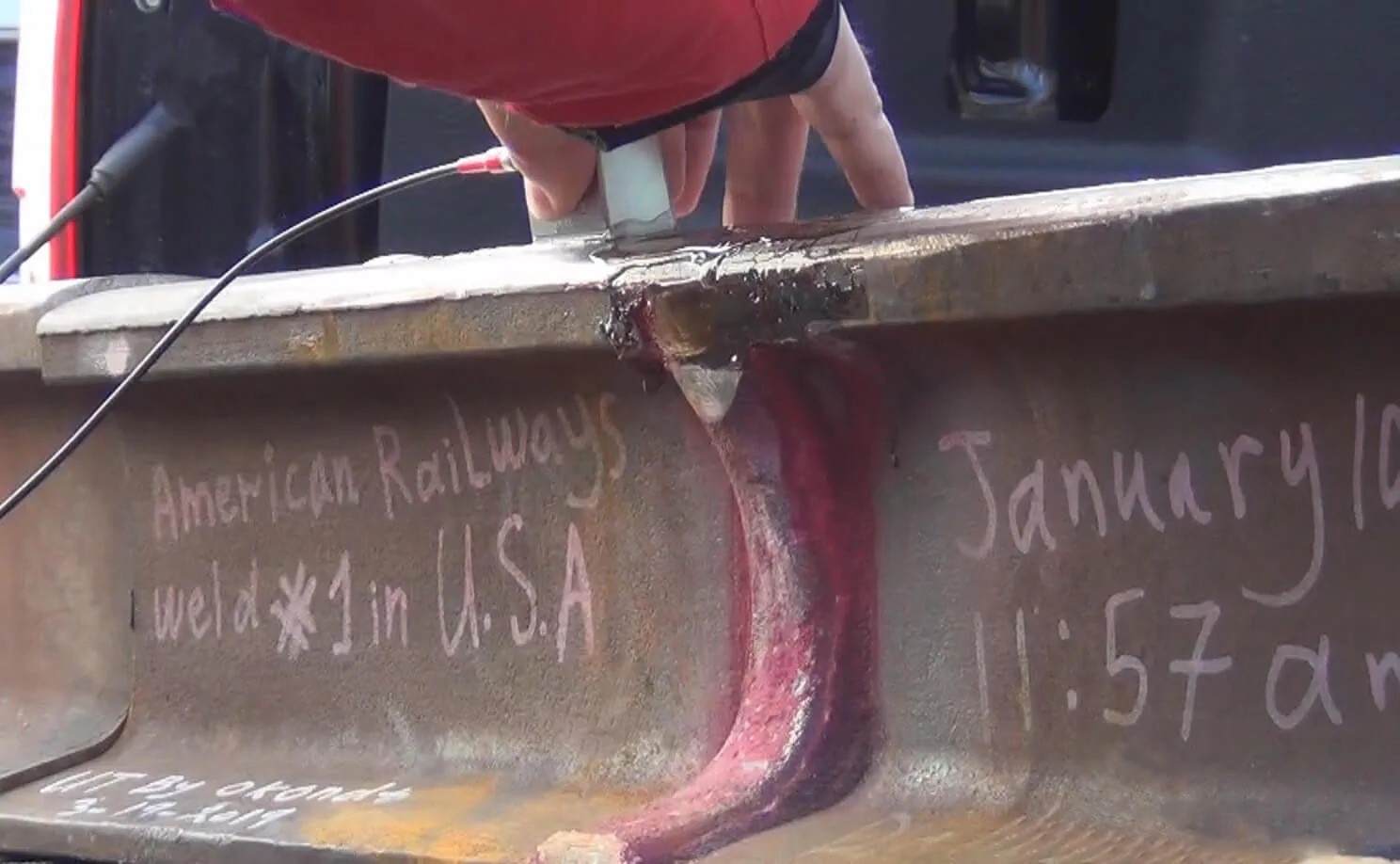

The USR-01 Set can be used for inspection of joints welded by the electrocontact method, for secondary rail track inspection based on the results of mechanized and quick systems of ultrasonic testing, as well as for pre-weld inspection of end sections of new and used rails before welding them at rail welding enterprises or in tracks.
USR-01 Kit Testing Of Rail Welded Joints
1 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic flaw detectors
- Yöntem / ürün ailesi
Teknik Özellikler
| Name and designation | Quantity |
|---|---|
| Sonocon B | 1 pc. |

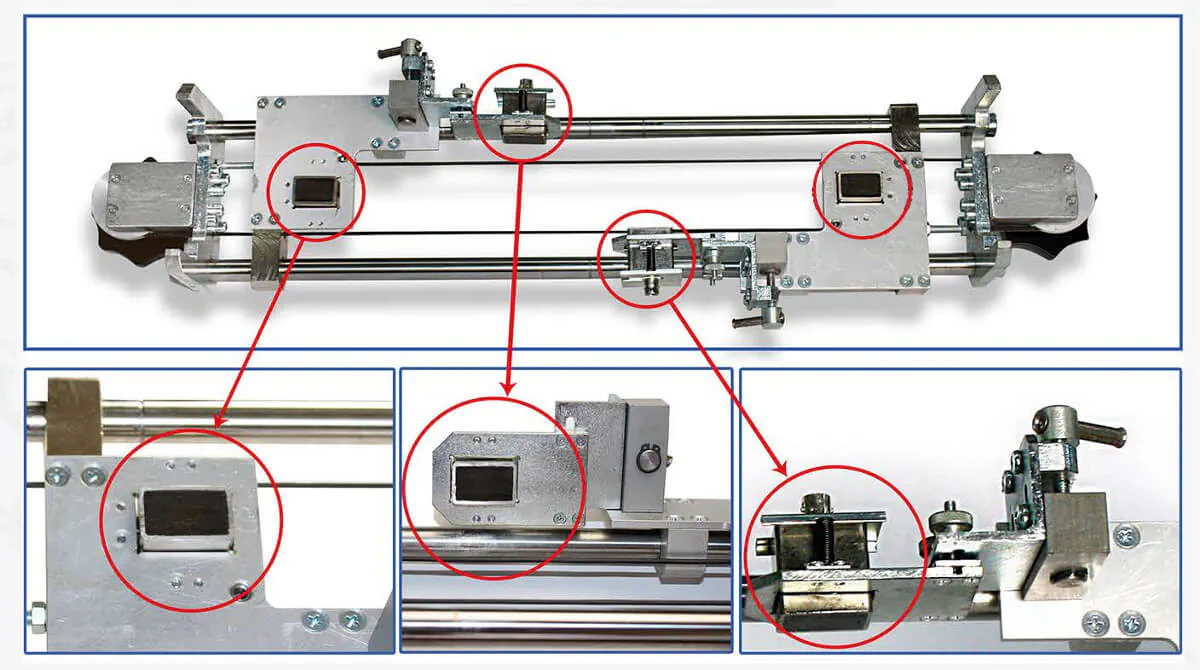

| USR-01 Scanner | 1 pc. |
| Angle Beam Single Crystal Probe: P121-2-70-R-01 (TAB2-70-14x14-R) (70 degree, 2 M Hz) | 2 pcs. |
| Angle Beam Single Crystal Probe: P121-2-45-R-01 (TAB2-45-14x14-R) (45 degree, 2 M Hz) | 2 pcs. |
| Additional manual probe Angle Beam Single Crystal Probe: TAB2-45-14x14 (45 degree, 2 M Hz) | 1 pc. |
| Additional manual probe Angle Beam Single Crystal Probe: TAB2-70 14x14 (70 degree, 2 M Hz) | 1 pc. |
| Additional manual probe Angle Beam Single Crystal Probe: TAB-D-2-70 (70 degree, 2 M Hz) | 1 pc. |
| Additional manual probe Straight Beam Single Crystal Probe: TSD4-20 | 1 pc. |
| Calibration block K2 (optional) — Connection cable probe / Electronic unit (2 Lemo00x2 BNC) | 1 pc. |
| Calibration block K2 (optional) — Connection cable probe / Electronic unit (BN Cx BNC) | 1 pc. |
| Calibration block K2 (optional) — Connection cable probe / Electronic unit (BN Cx Lemo OO) | 1 pc. |
| Calibration block K2 (optional) — Bag | 1 pc. |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
