Angle Beam Single Element Probe (USA version)
Üretici ürün açıklaması
Ultrasonic Angle Beam Probe (single element) produced by OKOndt GROUP™
Angle Beam Single Element Probe (USA version)
- Marka
- OKOndt Group
- Kategori
- Ultrasonic probes
- Yöntem / ürün ailesi
Teknik Özellikler
| Download brochure — Element dia. | Column 2: D | Column 3: L | Column 4: E | Column 5: Thread size |
|---|---|
| Download brochure — mm | Column 2: in | Column 3: mm | Column 4: in | Column 5: mm | Column 6: in | Column 7: mm | Column 8: in |
| Download brochure — 6 | Column 2: .250 | Column 3: 12.0 | Column 4: .450 | Column 5: 14.0 | Column 6: .540 | Column 7: 8.5 | Column 8: .335 | Column 9: 3/8"-32 UNEF |
| Download brochure — 8 | Column 2: .375 | Column 3: 16.0 | Column 4: .590 | Column 5: 18.0 | Column 6: .690 | Column 7: 11.2 | Column 8: .440 | Column 9: 1/2"-28 UNEF |
| Download brochure — 10 | Column 2: .500 | Column 3: 18.0 | Column 4: .700 | Column 5: 18.0 | Column 6: .710 | Column 7: 12.0 | Column 8: .460 | Column 9: 5/8"-24 UNEF |
| Download brochure — Element dia. (2) | Column 2: D | Column 3: L | Column 4: E | Column 5: Thread size |
| Download brochure — mm (2) | Column 2: in | Column 3: mm | Column 4: in | Column 5: mm | Column 6: in | Column 7: mm | Column 8: in |
| Download brochure — 6 (2) | Column 2: .250 | Column 3: 12.5 | Column 4: .50 | Column 5: 25.0 | Column 6: 1.0 | Column 7: 19.0 | Column 8: .75 | Column 9: 3/8"-32 UNEF |
| Download brochure — 8 (2) | Column 2: .375 | Column 3: 12.5 | Column 4: .50 | Column 5: 25.0 | Column 6: 1.0 | Column 7: 19.0 | Column 8: .75 | Column 9: 1/2"-28 UNEF |
| Download brochure — 10 (2) | Column 2: .500 | Column 3: 12.5 | Column 4: .50 | Column 5: 25.0 | Column 6: 1.0 | Column 7: 19.0 | Column 8: .75 | Column 9: 5/8"-24 UNEF |
| Download brochure — mm (3) | Frequency, MHz: in |
| Download brochure — TWS1-.500 | Element dia.: 12 | Connector type: .500 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS2-.250 | Frequency, MHz: 2.25 | Element dia.: 6 | Connector type: .250 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS2-37 | Element dia.: 10 | Connector type: .375 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS2-.500 | Element dia.: 12 | Connector type: .500 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS5-.250 | Frequency, MHz: 5.0 | Element dia.: 6 | Connector type: .250 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS5-.375 | Element dia.: 10 | Connector type: .375 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS5-.500 | Element dia.: 12 | Connector type: .500 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS10-.250 | Frequency, MHz: 10.0 | Element dia.: 6 | Connector type: .250 | Connector position: Microdot/lemo00 | Column 6: Top |
| Download brochure — TWS10-.375 | Element dia.: 10 | Connector type: .375 | Connector position: Microdot/lemo00 | Column 6: Top |

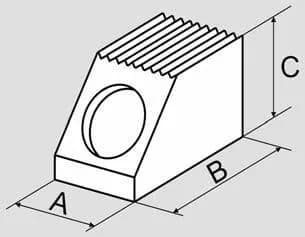

| Download brochure — mm (4) | Element dia.: in | A: mm | B: in | C: mm | Refracted angle in steel: in | Column 7: mm | Column 8: in |
| Download brochure — WS25-45 | Element dia.: 6 | A: .250 | B: 14.0 | C: .54 | Refracted angle in steel: 19.0 | Column 7: .74 | Column 8: 12.0 | Column 9: .48 | Column 10: 45 |
| Download brochure — WS25-60 | B: 14.0 | C: .54 | Refracted angle in steel: 21.0 | Column 7: .83 | Column 8: 14.0 | Column 9: .54 | Column 10: 60 |
| Download brochure — WS25-70 | B: 14.0 | C: .54 | Refracted angle in steel: 25.0 | Column 7: .98 | Column 8: .14.5 | Column 9: .57 | Column 10: 70 |
| Download brochure — WS25-90 | B: 14.0 | C: .54 | Refracted angle in steel: 28.5 | Column 7: 1.12 | Column 8: 16.0 | Column 9: .64 | Column 10: 90 |
| Download brochure — WS37-45 | Element dia.: 8 | A: .375 | B: 15.75 | C: .62 | Refracted angle in steel: 21.0 | Column 7: .83 | Column 8: 45.0 | Column 9: .55 | Column 10: 45 |
| Download brochure — WS37-60 | B: 15.75 | C: .62 | Refracted angle in steel: 27.5 | Column 7: 1.08 | Column 8: 60.0 | Column 9: .64 | Column 10: 60 |
| Download brochure — WS37-70 | B: 15.75 | C: .62 | Refracted angle in steel: 30.7 | Column 7: 1.21 | Column 8: 70.0 | Column 9: .70 | Column 10: 70 |
| Download brochure — WS37-90 | B: 15.75 | C: .62 | Refracted angle in steel: 36.0 | Column 7: 1.41 | Column 8: 90.0 | Column 9: .72 | Column 10: 90 |
| Download brochure — WS50-45 | Element dia.: 10 | A: .500 | B: 19.0 | C: .75 | Refracted angle in steel: 28.0 | Column 7: 1.1 | Column 8: 14.0 | Column 9: .55 | Column 10: 45 |
| Download brochure — WS50-60 | B: 19.0 | C: .75 | Refracted angle in steel: 33.0 | Column 7: 1.31 | Column 8: 16.0 | Column 9: .64 | Column 10: 60 |
| Download brochure — WS50-70 | B: 19.0 | C: .75 | Refracted angle in steel: 36.0 | Column 7: 1.43 | Column 8: 18.0 | Column 9: .70 | Column 10: 70 |
| Download brochure — WS50-90 | B: 19.0 | C: .75 | Refracted angle in steel: 41.0 | Column 7: 1.62 | Column 8: 18.0 | Column 9: .72 | Column 10: 90 |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
