Angle Beam Single Element Probes (EU version)
Üretici ürün açıklaması
Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™
Angle Beam Single Element Probes (EU version)
- Marka
- OKOndt Group
- Kategori
- Ultrasonic probes
- Yöntem / ürün ailesi
Teknik Özellikler

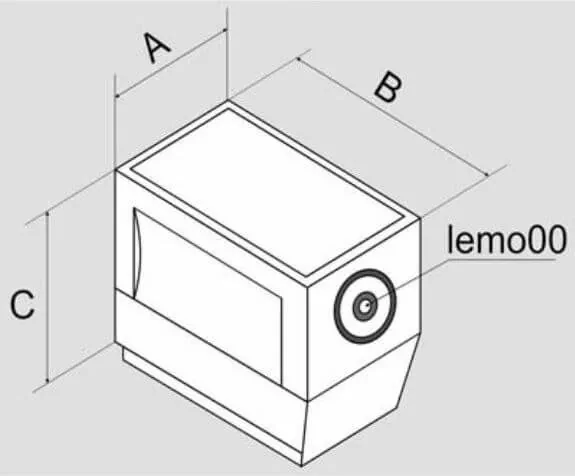

| Download brochure — Element dia. | Column 2: A | Column 3: B | Column 4: C |
|---|---|
| Download brochure — mm | Column 2: in | Column 3: mm | Column 4: in | Column 5: mm | Column 6: in | Column 7: mm | Column 8: in |
| Download brochure — 8x9 | Column 2: .315x.350 | Column 3: 16.5 | Column 4: .65 | Column 5: 28.5 | Column 6: 1.12 | Column 7: 22.0 | Column 8: 2.0 |
| Download brochure — 14x14 | Column 2: .550x.550 | Column 3: 21.2 | Column 4: .83 | Column 5: 37.5 | Column 6: 1.47 | Column 7: 30.7 | Column 8: 1.2 |
| Download brochure — 22x22 | Column 2: .860x.860 | Column 3: 31.6 | Column 4: 1.24 | Column 5: 56.0 | Column 6: 2.2 | Column 7: 44.0 | Column 8: 1.73 |
| Download brochure — mm (2) | Frequency, MHz: in |
| Download brochure — TAB1-45-8x9 | Frequency, MHz: 1.0 | Refracted angle, o: 45 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB1-60-8x9 | Frequency, MHz: 1.0 | Refracted angle, o: 60 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB1-70-8x9 | Frequency, MHz: 1.0 | Refracted angle, o: 70 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-45-8x9 | Frequency, MHz: 2.0 | Refracted angle, o: 45 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-60-8x9 | Frequency, MHz: 2.0 | Refracted angle, o: 60 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-70-8x9 | Frequency, MHz: 2.0 | Refracted angle, o: 70 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-45-8x9 | Frequency, MHz: 4.0 | Refracted angle, o: 45 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-60-8x9 | Frequency, MHz: 4.0 | Refracted angle, o: 60 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-70-8x9 | Frequency, MHz: 4.0 | Refracted angle, o: 70 | Element size,: 8x9 | Type of case: .315x.350 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-45-14x14 | Frequency, MHz: 2.0 | Refracted angle, o: 45 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-60-14x14 | Frequency, MHz: 2.0 | Refracted angle, o: 60 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-70-14x14 | Frequency, MHz: 2.0 | Refracted angle, o: 70 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-45-14x14 | Frequency, MHz: 4.0 | Refracted angle, o: 45 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-60-14x14 | Frequency, MHz: 4.0 | Refracted angle, o: 60 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB4-70-14x14 | Frequency, MHz: 4.0 | Refracted angle, o: 70 | Element size,: 14x14 | Type of case: .550x.550 | Connector type: Plated brass | Connector position: Lemo00 | Column 8: Side |
| Download brochure — TAB2-45-20x22 | Frequency, MHz: 2.0 | Refracted angle, o: 45 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
| Download brochure — TAB2-60-20x22 | Frequency, MHz: 2.0 | Refracted angle, o: 60 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
| Download brochure — TAB2-70-20x22 | Frequency, MHz: 2.0 | Refracted angle, o: 70 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
| Download brochure — TAB4-45-20x22 | Frequency, MHz: 4.0 | Refracted angle, o: 45 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
| Download brochure — TAB4-60-20x22 | Frequency, MHz: 4.0 | Refracted angle, o: 60 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
| Download brochure — TAB4-70-20x22 | Frequency, MHz: 4.0 | Refracted angle, o: 70 | Element size,: 20x22 | Type of case: .860x.860 | Connector type: Plated brass | Connector position: Lemo1S | Column 8: Side |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
