Straight Beam Dual Element Probes
Üretici ürün açıklaması
Ultrasonic Straight Beam Probes (double element) produced by OKOndt GROUP™
Straight Beam Dual Element Probes
- Marka
- OKOndt Group
- Kategori
- Ultrasonic probes
- Yöntem / ürün ailesi
Teknik Özellikler

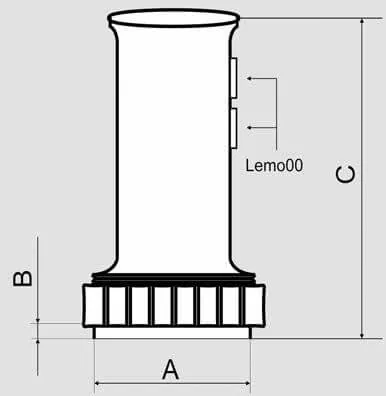

| Download brochure — Element dia., | Column 2: A, | Column 3: B, | Column 4: C, |
|---|---|
| Download brochure — mm | Column 2: in | Column 3: mm | Column 4: in | Column 5: mm | Column 6: in | Column 7: mm | Column 8: in |
| Download brochure — ∅10 | Column 2: ∅.375 | Column 3: 13.2 | Column 4: .52 | Column 5: 9.0 | Column 6: .35 | Column 7: 50.4 | Column 8: 1.98 |
| Download brochure — ∅12 | Column 2: ∅.500 | Column 3: 15.4 | Column 4: .60 | Column 5: 9.0 | Column 6: .35 | Column 7: 50.4 | Column 8: 1.98 |
| Download brochure — ∅20 | Column 2: ∅.750 | Column 3: 24.0 | Column 4: .94 | Column 5: 9.0 | Column 6: .35 | Column 7: 59.0 | Column 8: 2.32 |
| Download brochure — 7x18 | Column 2: .275x.750 | Column 3: 29.0 | Column 4: 1.14 | Column 5: 10.0 | Column 6: .40 | Column 7: 66.0 | Column 8: 2.60 |
| Download brochure — 6x20 | Column 2: .250x.750 | Column 3: 29.0 | Column 4: 1.14 | Column 5: 10.0 | Column 6: .40 | Column 7: 66.0 | Column 8: 2.60 |
| Download brochure — mm (2) | Frequency, MHz: in |
| Download brochure — TSD2-10 | Frequency, MHz: 2.0 | Element size,: ∅11/2 | Type of case: ∅.375 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD4-10 | Frequency, MHz: 4.0 | Element size,: 3.5x10 | Type of case: .375 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD5-10 | Frequency, MHz: 5.0 | Element size,: ∅9/2 | Type of case: ∅.375 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD2-12 | Frequency, MHz: 2.0 | Element size,: ∅12 | Type of case: ∅.500 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD4-12 | Frequency, MHz: 4.0 | Element size,: ∅12 | Type of case: ∅.500 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD5-12 | Frequency, MHz: 5.0 | Element size,: ∅12 | Type of case: ∅.500 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD2-20 | Frequency, MHz: 2.0 | Element size,: ∅20 | Type of case: ∅.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD4-20 | Frequency, MHz: 4.0 | Element size,: ∅20 | Type of case: ∅.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD5-20 | Frequency, MHz: 5.0 | Element size,: ∅20 | Type of case: ∅.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD2-24 | Frequency, MHz: 2.0 | Element size,: 7x18 | Type of case: .275x.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD4-24 | Frequency, MHz: 4.0 | Element size,: 6x20 | Type of case: .250x.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
| Download brochure — TSD5-24 | Frequency, MHz: 5.0 | Element size,: 6x20 | Type of case: .250x.750 | Connector type: Plated brass | Connector position: Lemo00 | Column 7: Side |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
