TOFD TRANSDUCERS AND WEDGES
Üretici ürün açıklaması
TOFD TRANSDUCERS AND WEDGES produced by OKOndt GROUP™
TOFD TRANSDUCERS AND WEDGES
- Marka
- OKOndt Group
- Kategori
- Ultrasonic probes
- Yöntem / ürün ailesi
Teknik Özellikler

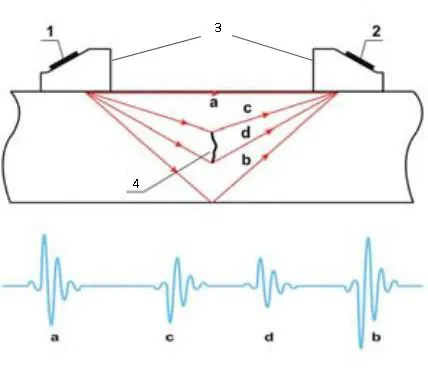

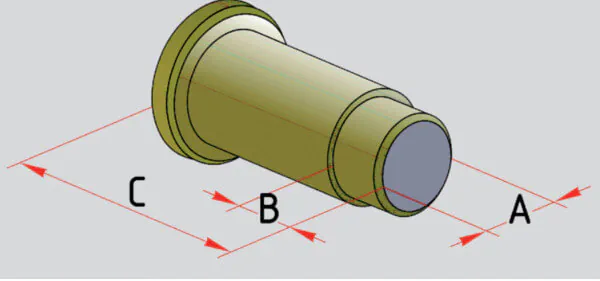

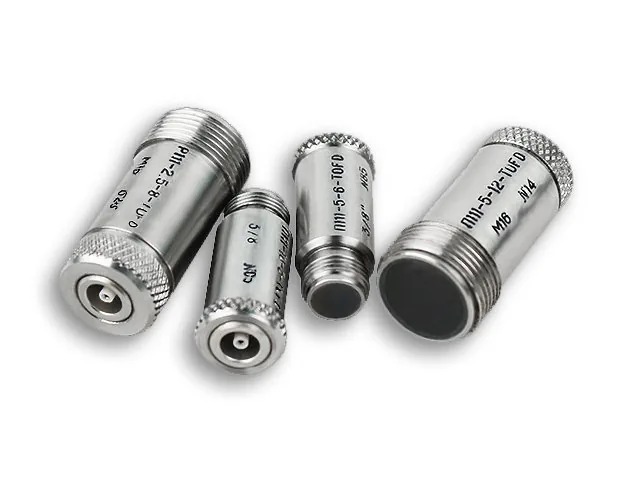

| TOFD transducers specification: — mm | Frequency, MHz: in | Element dia.: mm | Object thickness: in | A,: mm | B,: in | C,: mm | Column 8: in | Column 9: mm | Column 10: in |
|---|---|
| TOFD transducers specification: — TWS10-3-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: 3 | Object thickness: .125 | A,: 10-15 | B,: .390-.600 | C,: 10 | Column 8: .375 | Column 9: 6.5 | Column 10: .256 | Column 11: 28 | Column 12: 1.1 |
| TOFD transducers specification: — TWS10-6-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: 6 | Object thickness: .250 | A,: 15-35 | B,: .600-1.4 | C,: 10 | Column 8: .375 | Column 9: 6.5 | Column 10: .256 | Column 11: 28 | Column 12: 1.1 |
| TOFD transducers specification: — * TWS5-6-TOFD 3/8" | Frequency, MHz: 5 | Element dia.: 6 | Object thickness: .250 | A,: 15-50 | B,: 1.4-2.0 | C,: 10 | Column 8: .375 | Column 9: 6.5 | Column 10: .256 | Column 11: 28 | Column 12: 1.1 |
| TOFD transducers specification: — TWS5-12-TOFD M16 | Frequency, MHz: 5 | Element dia.: 12 | Object thickness: .500 | A,: 50-100 | B,: 2.0-4.0 | C,: 16 | Column 8: .625 | Column 9: 8 | Column 10: .315 | Column 11: 33 | Column 12: 1.3 |
| TOFD transducers specification: — TWS2.5-12-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: 12 | Object thickness: .500 | A,: 200-300 | B,: 8.0-6.0 | C,: 16 | Column 8: .625 | Column 9: 8 | Column 10: .315 | Column 11: 33 | Column 12: 1.3 |
| TOFD transducers specification: — TWS2.25-12-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: 12 | Object thickness: .500 | A,: 200-300 | B,: 8.0-6.0 | C,: 16 | Column 8: .625 | Column 9: 8 | Column 10: .315 | Column 11: 33 | Column 12: 1.3 |
| TOFD transducers specification: — TWS2.5-8-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: 8 | Object thickness: .325 | A,: 100-200 | B,: 4.0-8.0 | C,: 16 | Column 8: .625 | Column 9: 8 | Column 10: .315 | Column 11: 33 | Column 12: 1.3 |
| TOFD transducers specification: — TWS2.25-8-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: 8 | Object thickness: .325 | A,: 100-200 | B,: 4.0-8.0 | C,: 16 | Column 8: .625 | Column 9: 8 | Column 10: .315 | Column 11: 33 | Column 12: 1.3 |

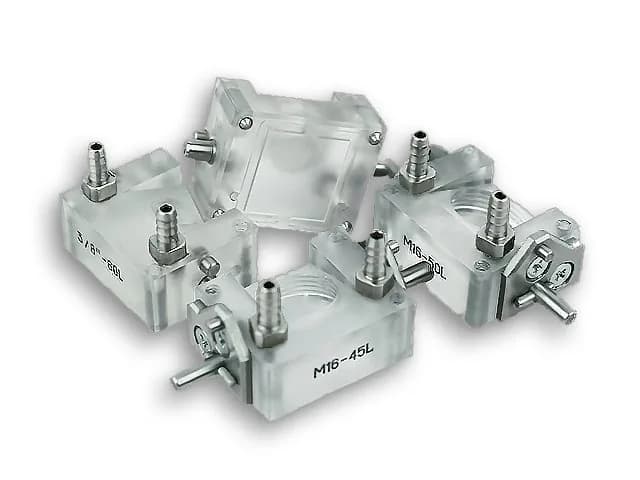

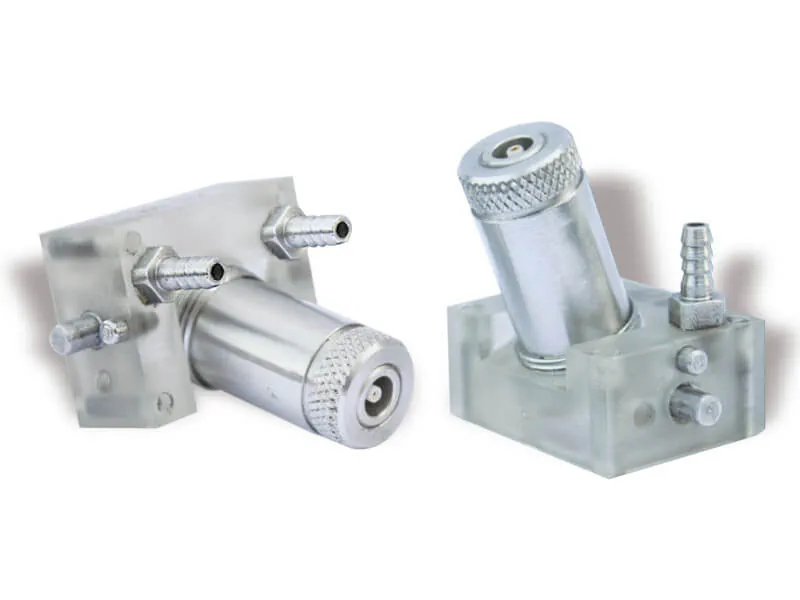

| TOFD wedges specification: — mm | Refracted angle o: in | A,: mm | B,: in | C,: mm | Column 6: in |
| TOFD wedges specification: — WS45 L-3/8"-TOFD | Refracted angle o: 45 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS50 L-3/8"-TOFD | Refracted angle o: 50 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS60 L-3/8"-TOFD | Refracted angle o: 60 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — * WS70 L-3/8"-TOFD | Refracted angle o: 70 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS45 L-M16-TOFD | Refracted angle o: 45 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS50 L-M16-TOFD | Refracted angle o: 50 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS60 L-M16-TOFD | Refracted angle o: 60 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
| TOFD wedges specification: — WS70 L-M16-TOFD | Refracted angle o: 70 | A,: 15 | B,: .570 | C,: 32 | Column 6: 1.26 | Column 7: 25 | Column 8: .984 |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
