Portable Ultrasonic Flaw Detector Sonocon B Version «Thickness Gauge +»
Üretici ürün açıklaması
Portable Ultrasonic Flaw Detector Sonocon B Version «Thickness Gauge +» combines the functionality of a traditional thickness gauge and corrosion monitor

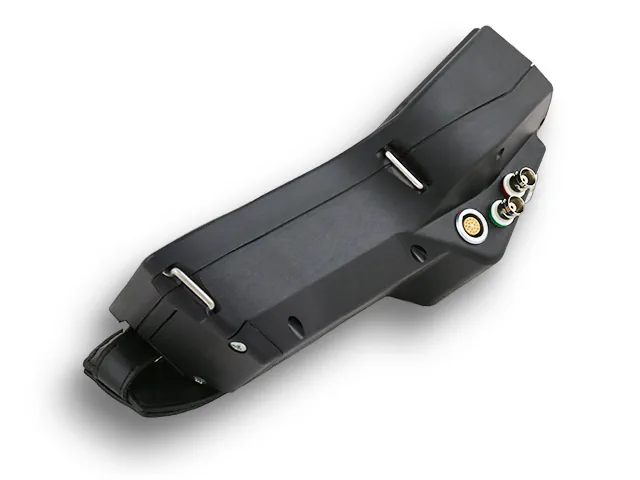

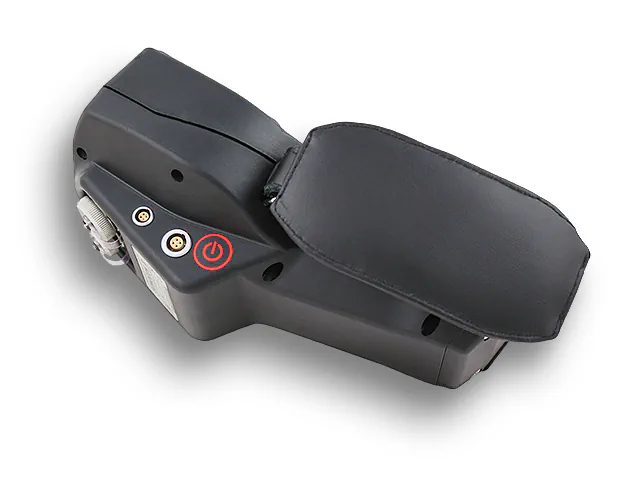

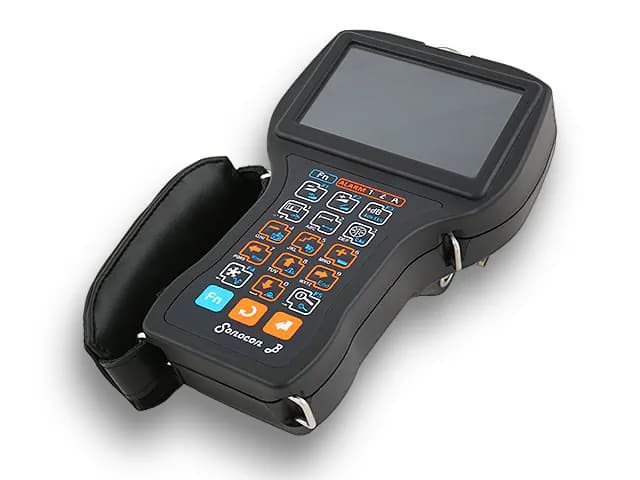

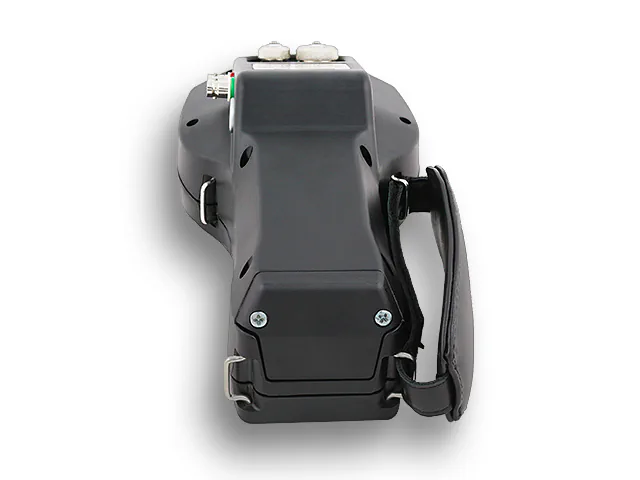

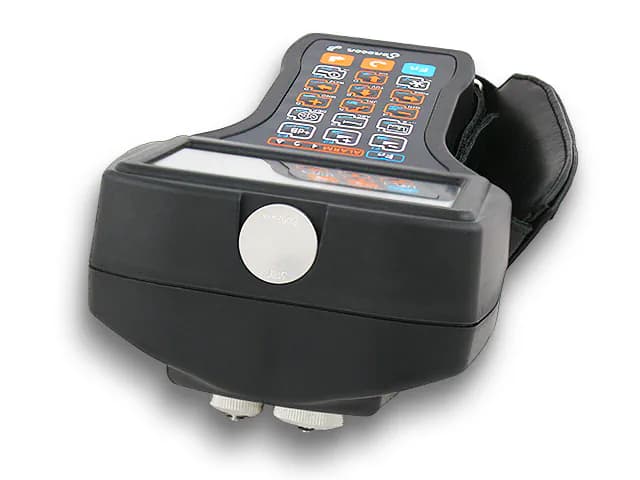

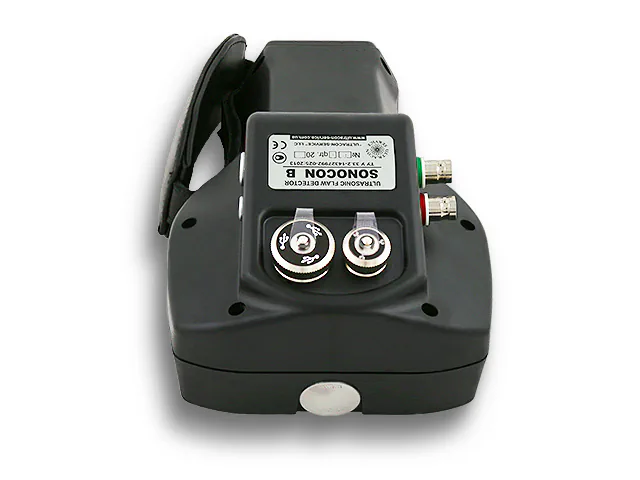

Portable Ultrasonic Flaw Detector Sonocon B Version «Thickness Gauge +»
17 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic thickness gauges
- Yöntem / ürün ailesi
Teknik Özellikler
| Display — Size | 4.5” |
|---|---|
| Display — Resolution | 800×480 |
| Connectors — Probe connectors | 2 × BNC or 2 × LEMO-1 or 2 × LEMO-00 |
| Connectors — Analog output | Alarm |
| Connectors — USB 1 | Type A |
| Connectors — LAN | ✔ |
| Pulser — Type | Square Wave (SWP) |
| Pulser — Autofit of the pulser parameters to the chosen probe | Voltage, Energy, Damping |
| Pulser — Measurement frequency (readings refresh rate) | 1 to 100 Hz |
| Pulser — PRF mode | Auto (Calculated from set readings refresh rate, accounting for averaging rate) |
| Receiver — Range (at steel longitudinal wave) | 8 000 mm (314 in) |
| Receiver — AGC | Individual to reach at 2 gates |
| Receiver — AGC Modes | OFF / Edge / Peak |
| Receiver — AGC Max Gain Modes | High, Medium, Low, Manual, Off |
| Receiver — Auto filters choice (according to the probe type) | ✔ |
| Measurement — Sound velocities range | 250 to 16000 m/s (.01 to .629 in/µs) |
| Measurement — Measurement range | 0.4 to 16 000 mm (.016 to .629 in) |
| Measurement — Readings resolution | 0.01 / 0.1 / 1 mm (0.001 / 0.01 / 0.1 in) |
| Measurement — Number of gates | 2 |
| Measurement — Modes | 1, 1-2 |
| Measurement — TOF Modes | Edge, Edge Zero Crossing |
| Measurement — Units | mm / in |
| Measurement — Min & Max capture mode | ✔ |
| Measurement — Differential mode | ✔ |
| Measurement — % of wear mode | ✔ |
| Measurement — Temperature compensation | ✔ |
| Measurement — Acquisition of a: Thickness B-Scan Thickness C-Scan | ✔ ✔ |
| Measurement — Measurements on the previously acquired: Thickness B-Scan Thickness C-Scan | ✔ ✔ |
| Alarm & Display — Alarm types | Min, Max, Min&Max |
| Alarm & Display — Coupling loss alarm | ✔ |
| Alarm & Display — Last reading (in coupling loss) | ✔ |
| Alarm & Display — A-Scan | ✔ |
| Alarm & Display — Cursor (Detect Line) | ✔ |
| Alarm & Display — Thickness B-Scan | ✔ |
| Alarm & Display — Thickness C-Scan | ✔ |
| Alarm & Display — Multidimensional files: Browsing | ✔ |
| Alarm & Display — Multidimensional files: File Statistics | ✔ |
| Alarm & Display — Multidimensional files Meas. Site Statistics | ✔ |
| Calibration — 1-point | ✔ |
| Calibration — 2-points | ✔ |
| Calibration — Zeroing in the air | ✔ |
| Calibration — Zeroing on a built-in block | ✔ |
| Memory — Setups | ✔ |
| Memory — Multidimensional structured files | 1-3 dim |
| Memory — Number of readings per file | Up to 100 000 |
| Memory — Number of files format | 6 |
| Memory — Data attachments | Comments, A-Scans, Thickness B-Scans, Thickness C-Scans, Microgrids |
| Memory — Capacity | 2 GB (up to 64 GB) |
| Memory — PC software | ✔ |
| Other Features — Keyboard backlight | ✔ |
| Other Features — Smart (Context) keyboard backlight | ✔ |
| Other Features — Smart zoom | ✔ |
| Other Features — Number of keyboard shortcuts 2 | 29 |
| Flaws evaluation — AWS | ✔ |
| Flaws evaluation — DGS (AVG) | ✔ |
| Flaws evaluation — DAC | ✔ |
| Flaws evaluation — DAC: Number of points | 128 |
| Flaws evaluation — DAC codes | ASME & ASME III, EN 1712, EN 1713, EN1714, JIS Z3060, GB11345, GB 4730 |
| Flaws evaluation — Custom DAC curves | up to 6 |
| Flaws evaluation — DAC 20-80 | ✔ |
| Flaws evaluation — DAC & TCG | ✔ |
| Memory — Setups (2) | ✔ |
| Memory — Datasets (with A-Scans) | ✔ |
| Memory — Capacity (2) | 2 GB (up to 64 GB) |
| Physical — Dimensions | 241×112×134 mm 3 |
| Physical — Weight incl. battery | 0.95 kg |
| Physical — Operating temp. range | -30°C to 50°C (-22°F to 122°F) |
| Physical — Dust & water protection | IP65 |
| Physical — Battery life | 8 h |
| Physical — Replaceable battery | ✔ |
| Electronic unit | 1 |
| Piezoelectric transducer:TSD5-10 | 1 |
| Connection cable probe / Electronic unit (2lemo00×2 BNC) | 1 |
| Mascot Type 2542 Charger | 1 |
| Hand strap | 1 |
| Software for processing the testing results on PC “Thickness gauge +” | 1 |
| Battery unit | 1 |
| Bag or Case | 1 |
| Documentation — Operating manual for Sonocon B version “Thickness gauge +” | 1 copy |
| Documentation — Operating manual for PC software for version “Thickness gauge +” | 1 copy |
| Documentation — Operating manual for Mascot charger | 1 copy |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
