Ultrasonic thickness gauge ExScan1000
Üretici ürün açıklaması
The ExScan1000 is a precision Ultrasonic thickness gauge. Based on the same operating principles as SONAR.

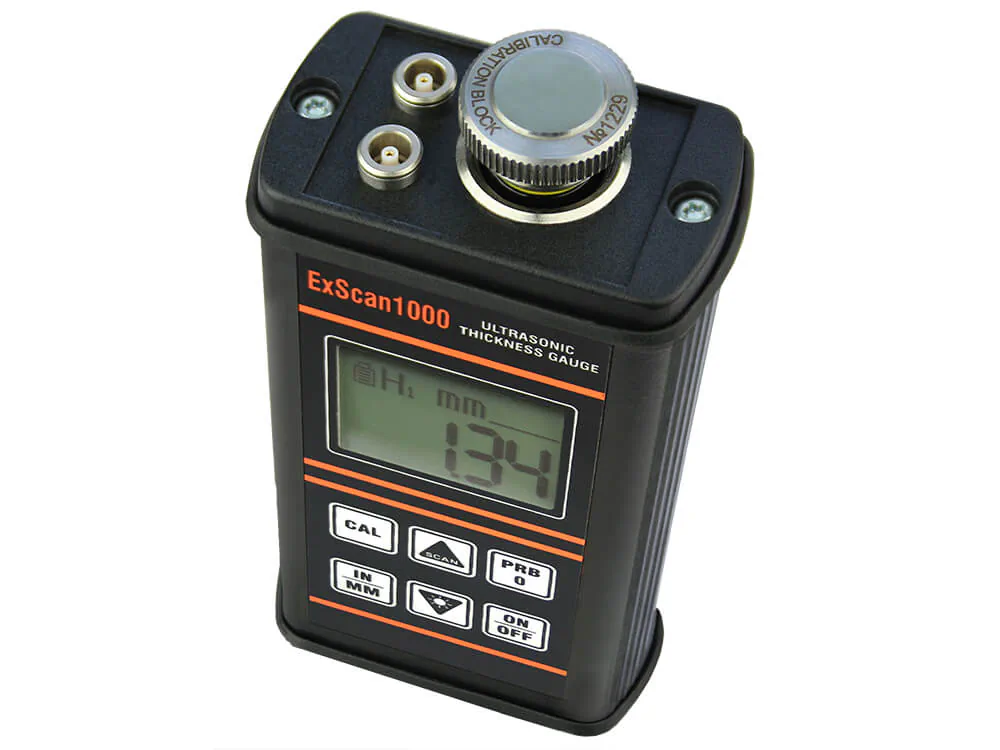

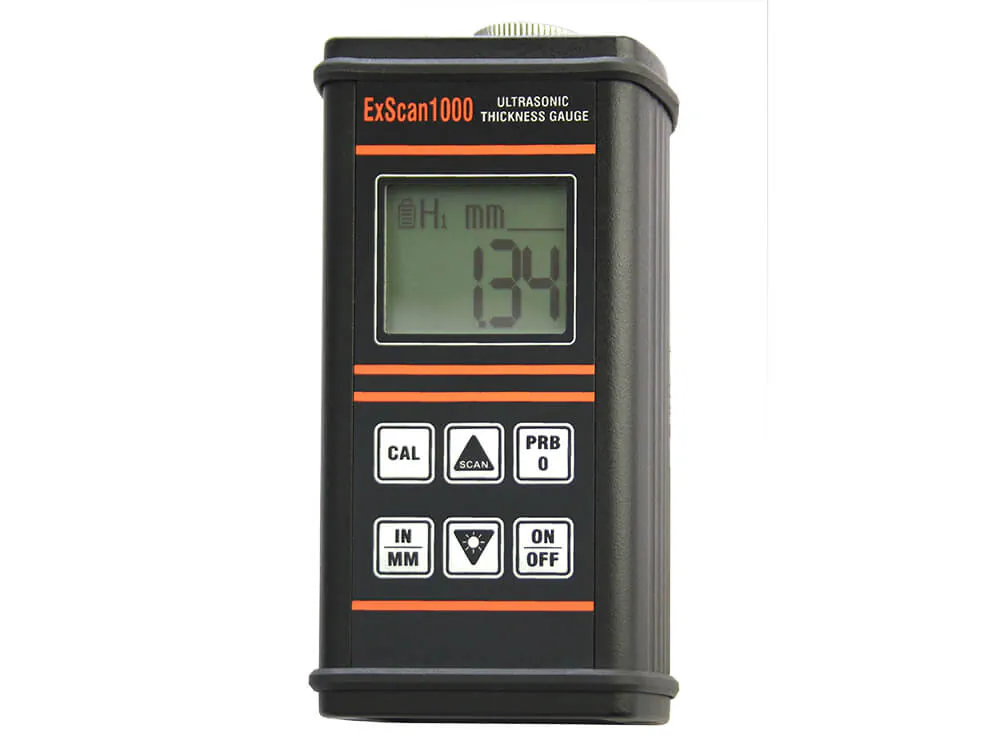

Ultrasonic thickness gauge ExScan1000
1 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Ultrasonic thickness gauges
- Yöntem / ürün ailesi
Teknik Özellikler
| Physical characteristics — Weight (including batteries): | 300 g |
|---|---|
| Physical characteristics — Overall dimensions (W×H×D): | 125 x 70 x 30 mm |
| Physical characteristics — Operating temperature: | -20 to +50 ºС |
| Physical characteristics — Run time (with display backlight switched off) alkaline battery-operated: | 200 hours |
| Physical characteristics — on Ni Cad battery-operated: | 120 hours |
| Probes — Probe type: | Dual element (T/R) |
| Probes — Frequency range: | 1 - 10 MHz |
| Probes — Connector type: | LEMO |
| Probes — Cable length: | 2 m. |
| Power source — Three “ААА” batteries: | 1.5V alkaline or 1.2V NiCad |
| Display — Display type: | FSTN/POSITIVE LCD |
| Display — Display size: | 30mm (H) х 25mm (W) |
| Functional backlight display to be used in poor light conditions — Measurement readings: | inch, in/µs, mm or m/s |
| Measuring characteristics — Display mode: | material thickness |
| Measuring characteristics — Measuring mode: | PE |
| Measuring characteristics — Measuring rate in “Measuring” mode: | 4 readings per second |
| Measuring characteristics — Measuring rate in “Scanning” mode: | 16 readings per second, with minimum thickness record |
| Measuring characteristics — Range: | 0.63 - 500 mm (0.025 - 19.999 in) |
| Measuring characteristics — Accuracy: | ± (0.05 + 0.002×H m ) mm |
| Measuring characteristics — Resolution: | 0.01 mm (0.001 in) |
| Measuring characteristics — Velocity range: | 1250 - 14000 m/s or 0.0492 - 0.5511 in/µs |
| Measuring characteristics — Calibration options: | single point, double point, velocity |
| Measuring characteristics — V-correction: | automatic |
| Measuring characteristics — Zero calibration: | manual (internal reference standard for thickness) |

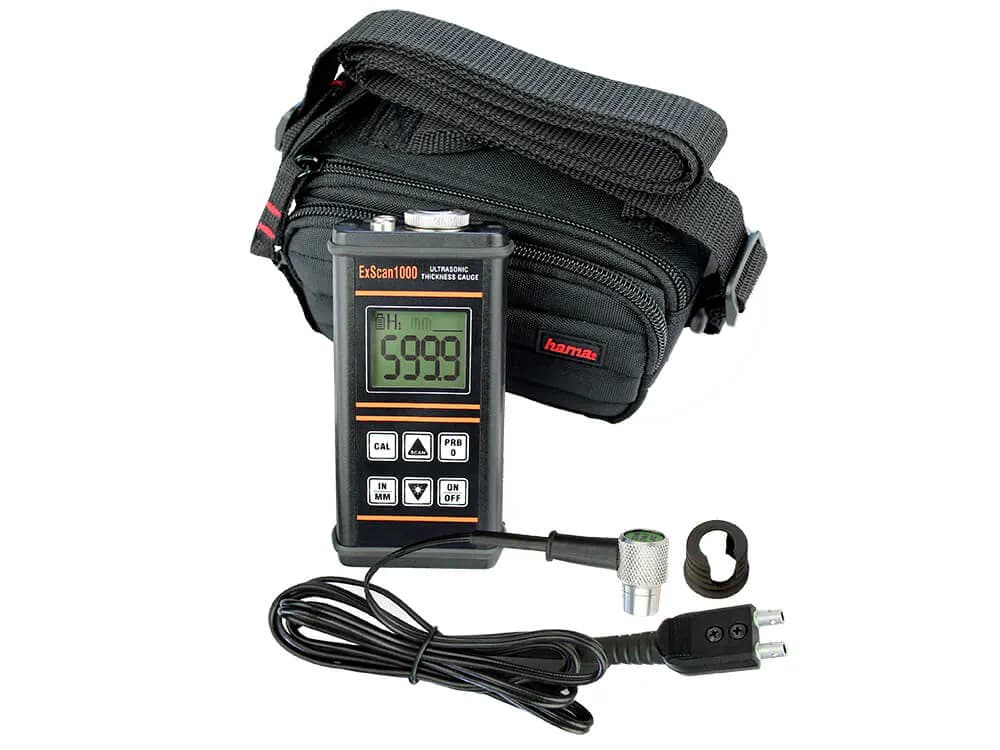

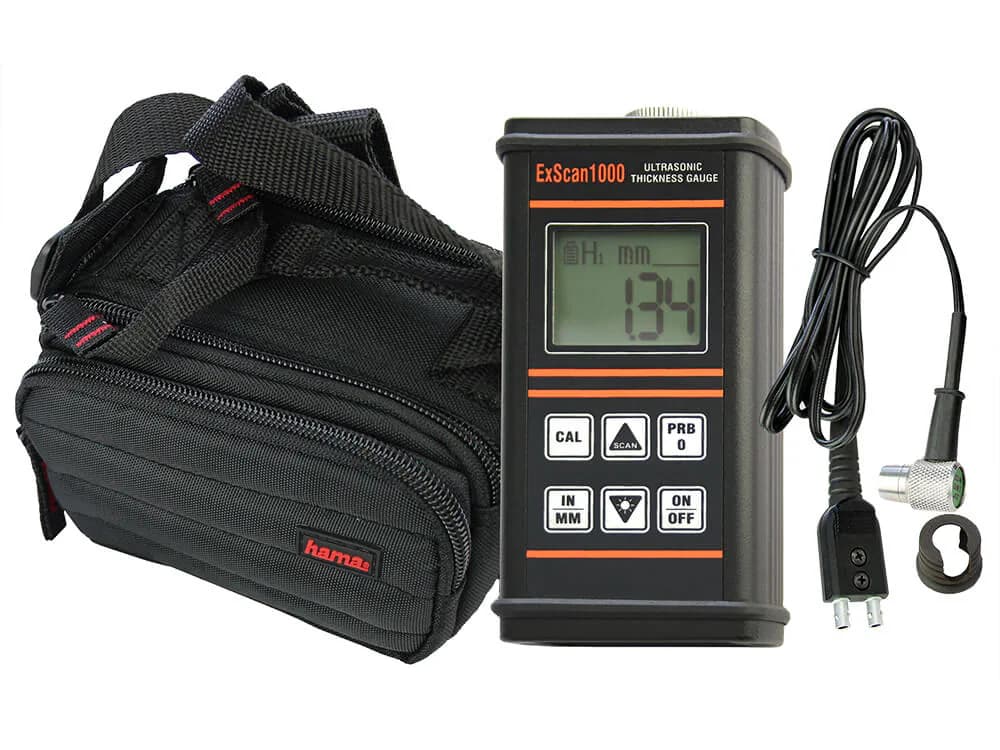

| Item | Q-ty, pcs. |
| Ultrasonic thickness gauge Ex Scan1000 | 1 |

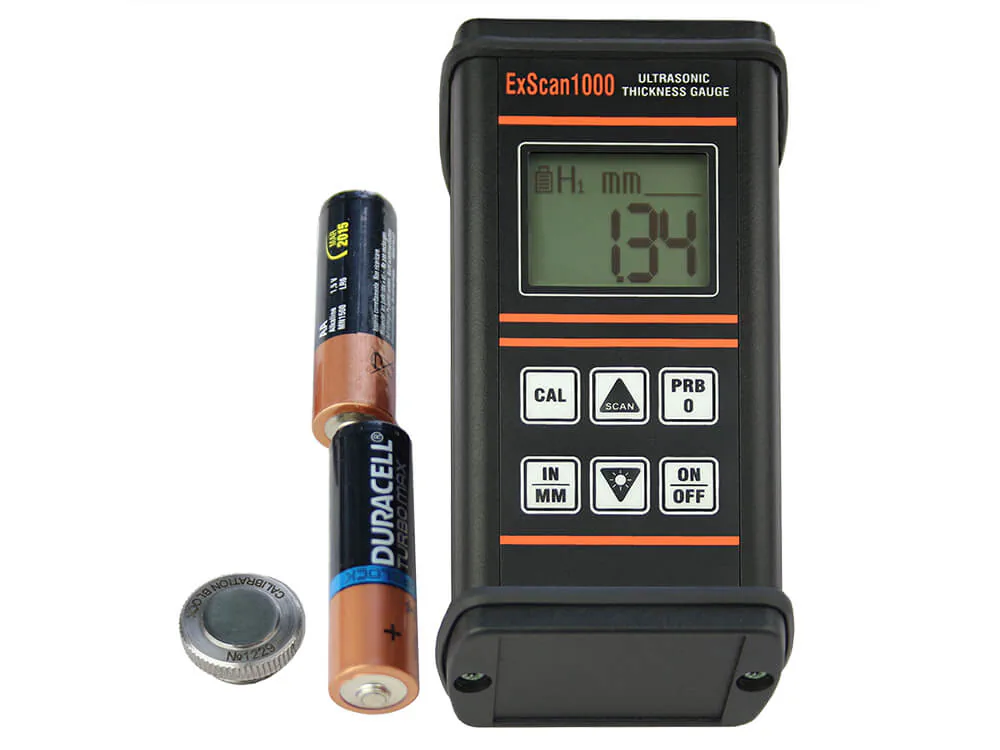

| AAA batteries | 3 |

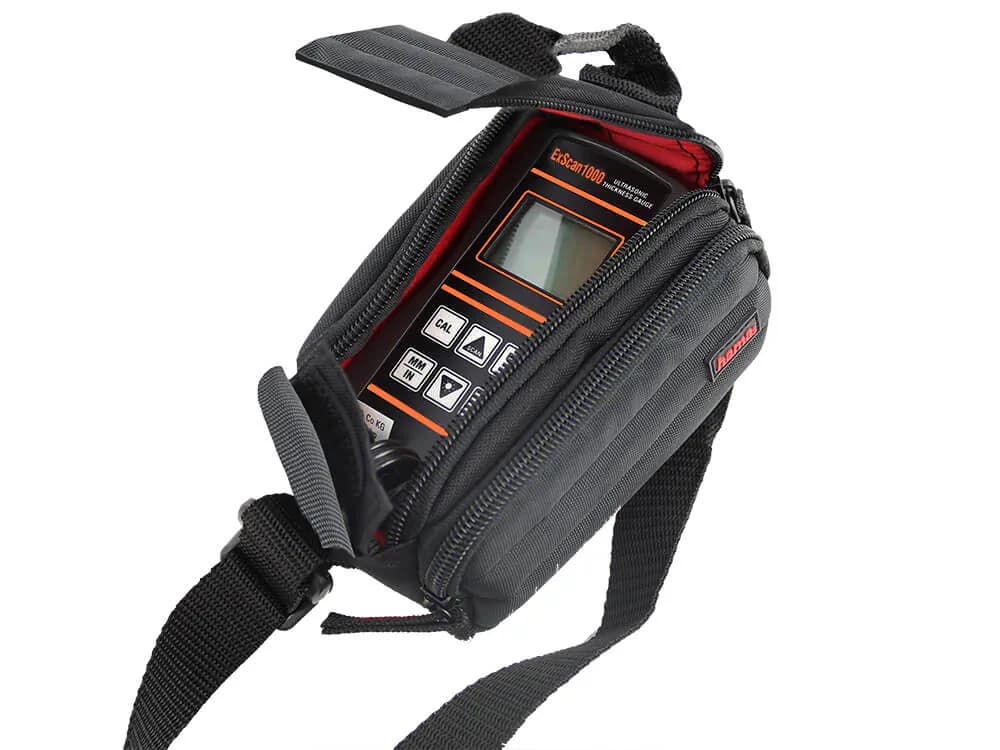

| Soft bag | 1 |
| 0.25" 5 M Hz ultrasonic piezoelectric transducer | 1 |
| Transducer`s shoe | 1 |
| Operating manual | 1 copy |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
