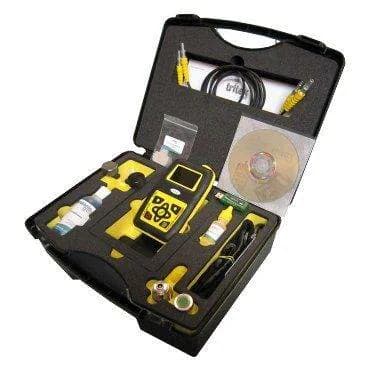

Multigauge 5750 Surveyor Datalogger Thickness Meter

Üretici ürün açıklaması

Surveyor datalogger for metal, GRP and plastic measurements with three measurement modes, onboard storage and wireless transfer.

Marka

Tritex NDT

Kategori

GRP

Yöntem / ürün ailesi

Model

Multigauge 5750

Sound Velocity Range	From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes	Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz / Single crystal hard faced – 1 MHz
Measurement Range	Steel: 1 – 300 mm (0.04” – 11.8”) depending on probe type. GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP.
Probe Sizes	6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Measurement Mode	Multiple Echo / Echo – Echo / Single Echo
Resolution	0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy	± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display	Colour LCD
Storage Capacity	32 Mb
Data Transmission	Wireless RF
Coatings Range	Up to 6mm (Standard Mode); up to 20mm (Coating Plus+)
Batteries	3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life	Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions	147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight	325 g (11.5 ounces) including batteries
Environmental	Case rated to IP65, RoHS and WEEE compliant
Operating Temp	-10°C to +50°C (14°F to 122°F)
Storage Temp	-10°C to +60°C (14°F to 140°F)

Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
