Tritex NDT

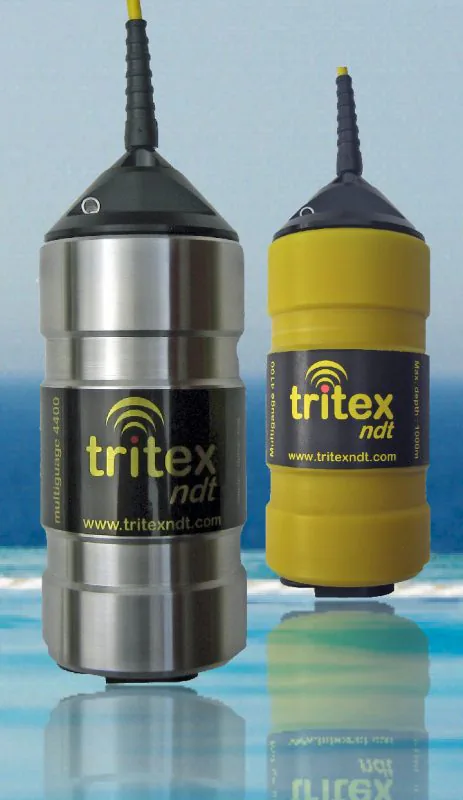

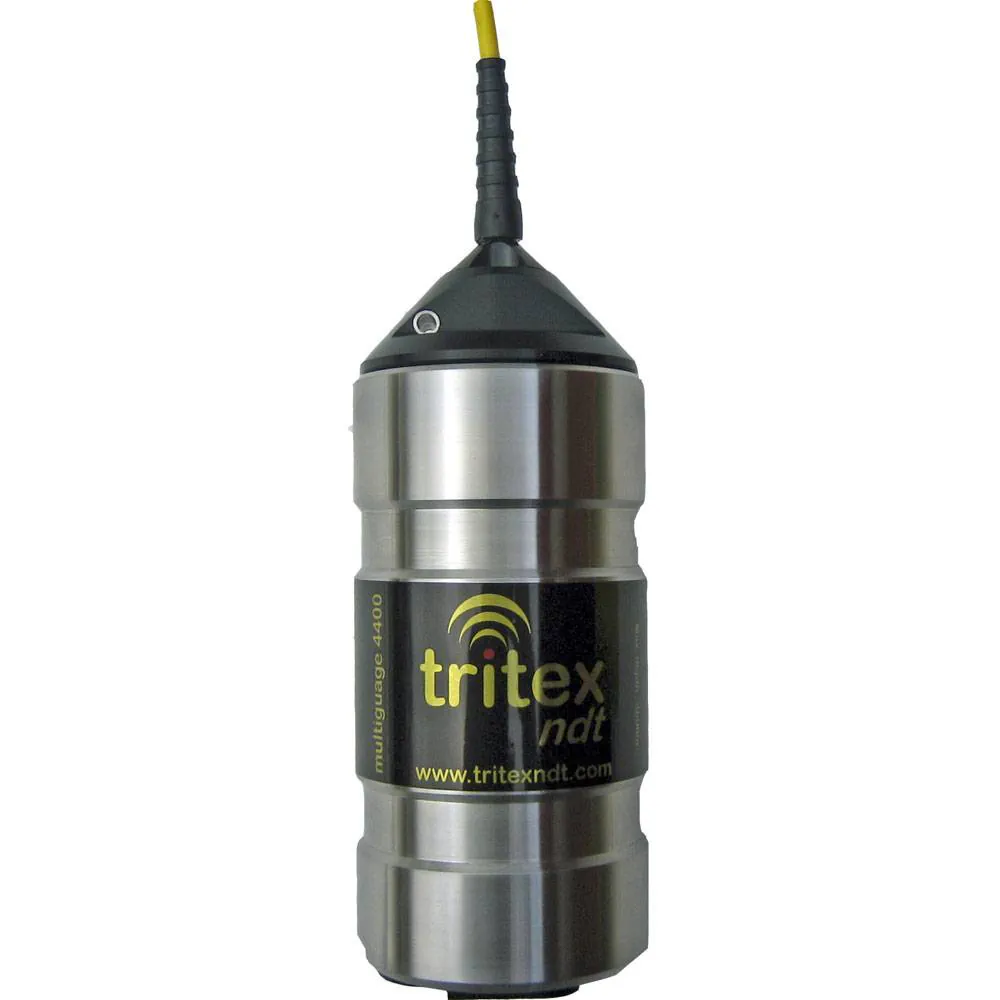

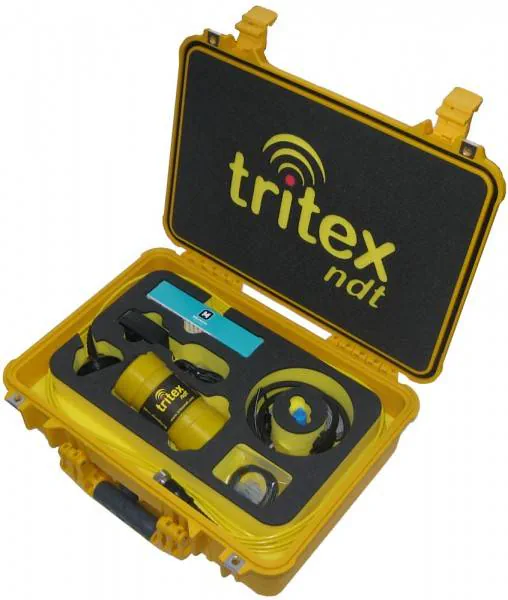

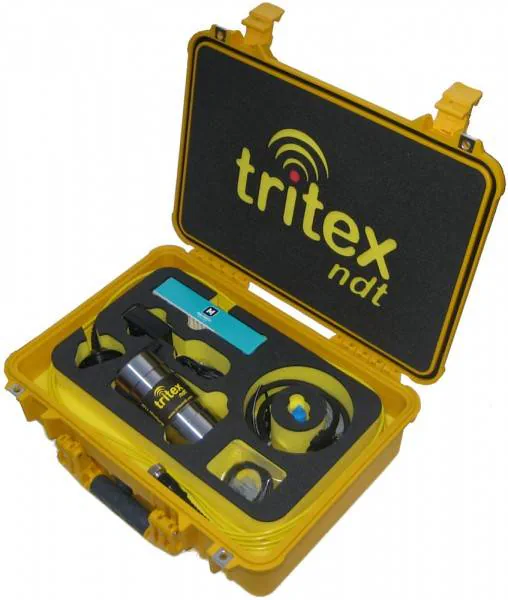

Multigauge 4000 Series ROV Underwater Thickness Gauge
Üretici ürün açıklaması
ROV-mounted underwater thickness-gauge family comprising the Multigauge 4050 Micro, 4100 and 4400, with model-specific depth ratings.
Multigauge 4000 Series ROV Underwater Thickness Gauge
- Marka
- Tritex NDT
- Kategori
- Metal
- Yöntem / ürün ailesi
- Model
- Multigauge 4050 Micro, Multigauge 4100, Multigauge 4400
Teknik Özellikler
| Sound Velocity Range | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
|---|---|
| Probes | Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz |
| Measurement Range | 1 – 250 mm (0.04” – 10”) depending on probe used |
| Probe Sizes | 13 mm (0.5”) & 19 mm (0.75”) |
| Measurement Mode | Multiple Echo |
| Resolution | 0.1 mm (0.005”) or 0.05 mm (0.002”) |
| Accuracy | ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) |
| Coatings Range | Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)* |
| Output | RS422 or RS232 User Selectable. Optional A-scan |
| Depth Rating | Multigauge 4050: 500 metres (1650′); Multigauge 4100: 1000 metres (3280′); Multigauge 4400: 4000 metres (13,123’) |
| Probe Cable Length | Multigauge 4050: 1.5 Metres (4.92 feet); Multigauge 4100 and 4400: 3 metres (9.84 feet) |
| Power Required | 9Vdc – 30Vdc @150mA |
| Gauge Dimensions | Multigauge 4050: 145 mm x 52 mm (5.71” X 2.05”); Multigauge 4100 and 4400: 145 mm x 72 mm (5.71” X 2.83”) |
| Gauge Weight | Multigauge 4050: 620 grams (21.87 ounces); Multigauge 4100: 855 grams (30.16 ounces); Multigauge 4400: 2500 grams (151.68 ounces) |
| Environmental | RoHS and WEEE compliant |
| Operating Temp | -10°C to +50°C (14°F to 122°F) |
| Storage Temp | -10°C to +60°C (14°F to 140°F) |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
