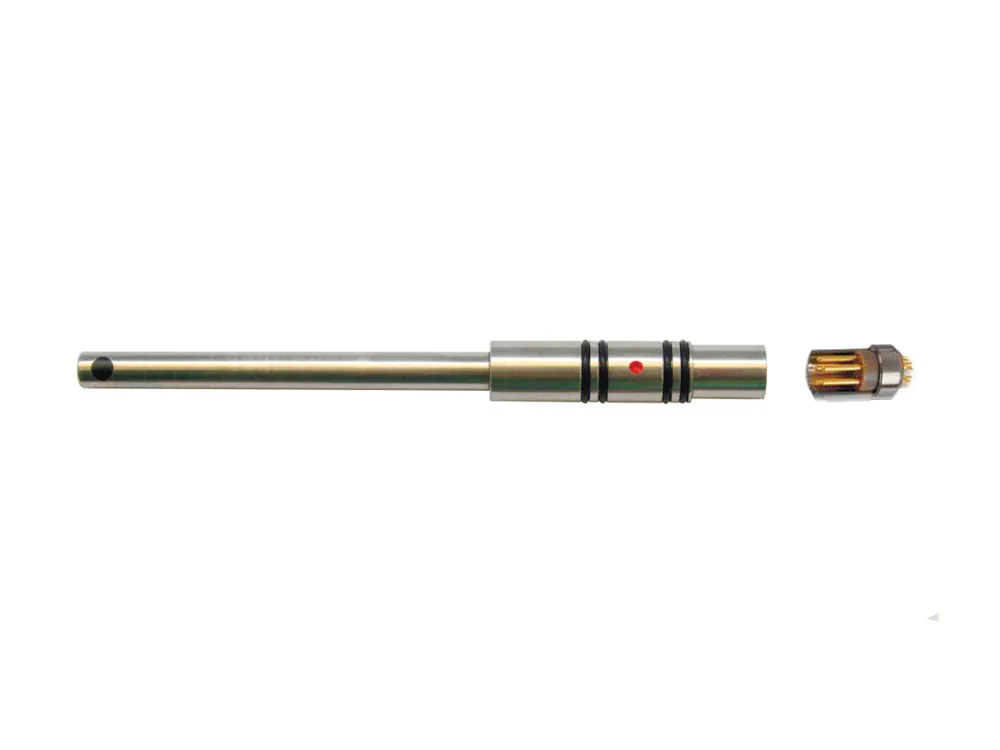

Dynamic Rotating Rigid Probe (with stainless steel housing) for bolt holes testing (coils are positioned at right angles to the probe shaft length, Differential Unshielded)
Manufacturer product description
Dynamic Rotating Rigid Eddy Current Probe (with stainless steel housing) for bolt holes testing (coils are positioned at right angles to the probe shaft length, Differential Unshielded / Shielded)
Dynamic Rotating Rigid Probe (with stainless steel housing) for bolt holes testing (coils are positioned at right angles to the probe shaft length, Differential Unshielded)
- Brand
- OKOndt Group
- Category
- Eddy current testing
- Method / product family
Technical Specifications
| Brochure: Eddy current probes — RO3.18×85 RD | Tip Ø ‘D’, in (mm): 1/8" (3.18) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: 4-pin Fischer connector (to Hocking, GE, Rohmann and Forester drive units, etc.) | Material: Fe/NFe |
|---|---|
| Brochure: Eddy current probes — RO3.57×85 RD | Tip Ø ‘D’, in (mm): 9/64" (3.57) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO3.97×85 RD | Tip Ø ‘D’, in (mm): 5/32" (3.97) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO4.37×85 RD | Tip Ø ‘D’, in (mm): 11/64" (4.37) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO4.76×85 RD | Tip Ø ‘D’, in (mm): 3/16" (4.76) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO5.16×85 RD | Tip Ø ‘D’, in (mm): 13/64" (5.16) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO5.56×85 RD | Tip Ø ‘D’, in (mm): 7/32" (5.56) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO5.95×85 RD | Tip Ø ‘D’, in (mm): 15/64" (5.95) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO6.35×85 RD | Tip Ø ‘D’, in (mm): 1/4" (6.35) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO6.75×85 RD | Tip Ø ‘D’, in (mm): 17/64" (6.75) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO7.14×85 RD | Tip Ø ‘D’, in (mm): 9/32" (7.14) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO7.54×85 RD | Tip Ø ‘D’, in (mm): 19/64" (7.54) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO7.94×85 RD | Tip Ø ‘D’, in (mm): 5/16" (7.94) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO8.33×85 RD | Tip Ø ‘D’, in (mm): 13/64" (8.33) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO8.73×85 RD | Tip Ø ‘D’, in (mm): 11/32" (8.73) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO9.13×85 RD | Tip Ø ‘D’, in (mm): 23/64" (9.13) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO9.52×85 RD | Tip Ø ‘D’, in (mm): 3/8" (9.52) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO9.92×85 RD | Tip Ø ‘D’, in (mm): 25/64" (9.92) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO10.32×85 RD | Tip Ø ‘D’, in (mm): 13/32" (10.32) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO10.72×85 RD | Tip Ø ‘D’, in (mm): 27/64" (10.72) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO11.11×85 RD | Tip Ø ‘D’, in (mm): 7/16" (11.11) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO11.51×85 RD | Tip Ø ‘D’, in (mm): 29/64" (11.51) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO11.91×85 RD | Tip Ø ‘D’, in (mm): 15/32" (11.91) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO12.30×85 RD | Tip Ø ‘D’, in (mm): 31/64" (12.30) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO12.70×85 RD | Tip Ø ‘D’, in (mm): 1/2" (12.70) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO13.10×85 RD | Tip Ø ‘D’, in (mm): 33/64" (13.10) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO13.49×85 RD | Tip Ø ‘D’, in (mm): 17/32" (13.49) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO13.89×85 RD | Tip Ø ‘D’, in (mm): 35/64" (13.89) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO14.29×85 RD | Tip Ø ‘D’, in (mm): 9/16" (14.29) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO14.68×85 RD | Tip Ø ‘D’, in (mm): 37/64" (14.68) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO15.08×85 RD | Tip Ø ‘D’, in (mm): 19/32" (15.08) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO15.48×85 RD | Tip Ø ‘D’, in (mm): 39/64" (15.48) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO15.88×85 RD | Tip Ø ‘D’, in (mm): 5/8" (15.88) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO16.27×85 RD | Tip Ø ‘D’, in (mm): 41/64" (16.27) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO16.67×85 RD | Tip Ø ‘D’, in (mm): 21/32" (16.67) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO17.07×85 RD | Tip Ø ‘D’, in (mm): 43/64" (17.07) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO17.46×85 RD | Tip Ø ‘D’, in (mm): 11/16" (17.46) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO17.86×85 RD | Tip Ø ‘D’, in (mm): 45/64" (17.86) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO18.26×85 RD | Tip Ø ‘D’, in (mm): 23/32" (18.26) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO18.65×85 RD | Tip Ø ‘D’, in (mm): 47/64" (18.65) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO19.05×85 RD | Tip Ø ‘D’, in (mm): 3/4" (19.05) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO19.45×85 RD | Tip Ø ‘D’, in (mm): 49/64" (19.45) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO19.84×85 RD | Tip Ø ‘D’, in (mm): 25/32" (19.84) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO20.24×85 RD | Tip Ø ‘D’, in (mm): 51/64" (20.24) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO20.64×85 RD | Tip Ø ‘D’, in (mm): 13/16" (20.64) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO21.03×85 RD | Tip Ø ‘D’, in (mm): 53/64" (21.03) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO21.43×85 RD | Tip Ø ‘D’, in (mm): 27/32" (21.43) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO21.83×85 RD | Tip Ø ‘D’, in (mm): 55/64" (21.83) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO22.23×85 RD | Tip Ø ‘D’, in (mm): 7/8" (22.23) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO22.62×85 RD | Tip Ø ‘D’, in (mm): 57/64" (22.62) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO23.02×85 RD | Tip Ø ‘D’, in (mm): 29/32" (23.02) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO23.42×85 RD | Tip Ø ‘D’, in (mm): 59/64" (23.42) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO23.81×85 RD | Tip Ø ‘D’, in (mm): 15/16" (23.81) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO24.21×85 RD | Tip Ø ‘D’, in (mm): 61/64" (24.21) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO24.61×85 RD | Tip Ø ‘D’, in (mm): 31/32" (24.61) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO25.00×85 RD | Tip Ø ‘D’, in (mm): 63/64" (25.00) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO25.40×85 RD | Tip Ø ‘D’, in (mm): 1 (25.40) | Drop length, mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO | Column 2: 3.18 | Column 3: x | Column 4: 85 | Column 5: RD (Sh) |
| Brochure: Eddy current probes — 1 | Column 2: 2 | Column 4: 3 | Column 5: 4 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
