OKOndt Group
TOFD Man ultrasonic weld testing equipment
Üretici ürün açıklaması
TOFD Man system is designed for testing long welded joints of pipes, tanks, vessels, cisterns, ship hulls, bridges, etc. using TOFD technique
TOFD Man ultrasonic weld testing equipment
10 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- TOFD Equipment
- Yöntem / ürün ailesi
Teknik Özellikler
| TOFD transducers specification: — in | Frequency, MHz: mm | Element dia.: in | Object thickness: mm |
|---|---|
| TOFD transducers specification: — TWS10-3-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: .125 | Object thickness: 3 | Column 5: .390-.600 | Column 6: 10-15 |
| TOFD transducers specification: — TWS10-6-TOFD 3/8" | Frequency, MHz: 10 | Element dia.: .250 | Object thickness: 6 | Column 5: .600-1.4 | Column 6: 15-35 |
| TOFD transducers specification: — * TWS5-6-TOFD 3/8" | Frequency, MHz: 5 | Element dia.: .250 | Object thickness: 6 | Column 5: 1.4-2.0 | Column 6: 15-50 |
| TOFD transducers specification: — TWS5-12-TOFD M16 | Frequency, MHz: 5 | Element dia.: .500 | Object thickness: 12 | Column 5: 2.0-4.0 | Column 6: 50-100 |
| TOFD transducers specification: — TWS3-12-TOFD M16 | Frequency, MHz: 3 | Element dia.: .500 | Object thickness: 12 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.5-12-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: .500 | Object thickness: 12 | Column 5: 8.0-6.0 | Column 6: 200-300 |
| TOFD transducers specification: — TWS2.25-12-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: .500 | Object thickness: 12 | Column 5: 8.0-6.0 | Column 6: 200-300 |
| TOFD transducers specification: — TWS3-8-TOFD M16 | Frequency, MHz: 3.0 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.5-8-TOFD M16 | Frequency, MHz: 2.5 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |
| TOFD transducers specification: — TWS2.25-8-TOFD M16 | Frequency, MHz: 2.25 | Element dia.: .325 | Object thickness: 8 | Column 5: 4.0-8.0 | Column 6: 100-200 |

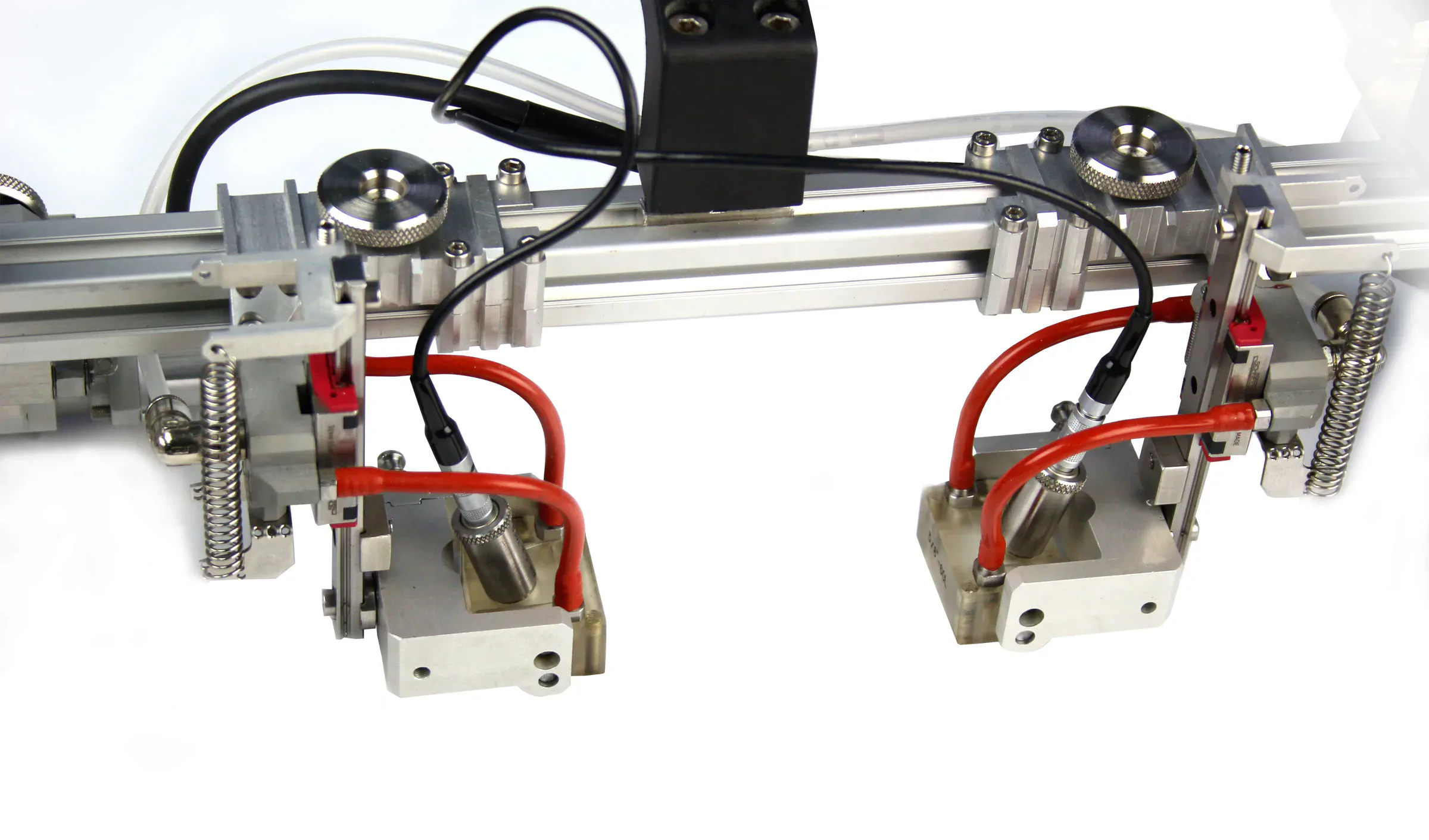

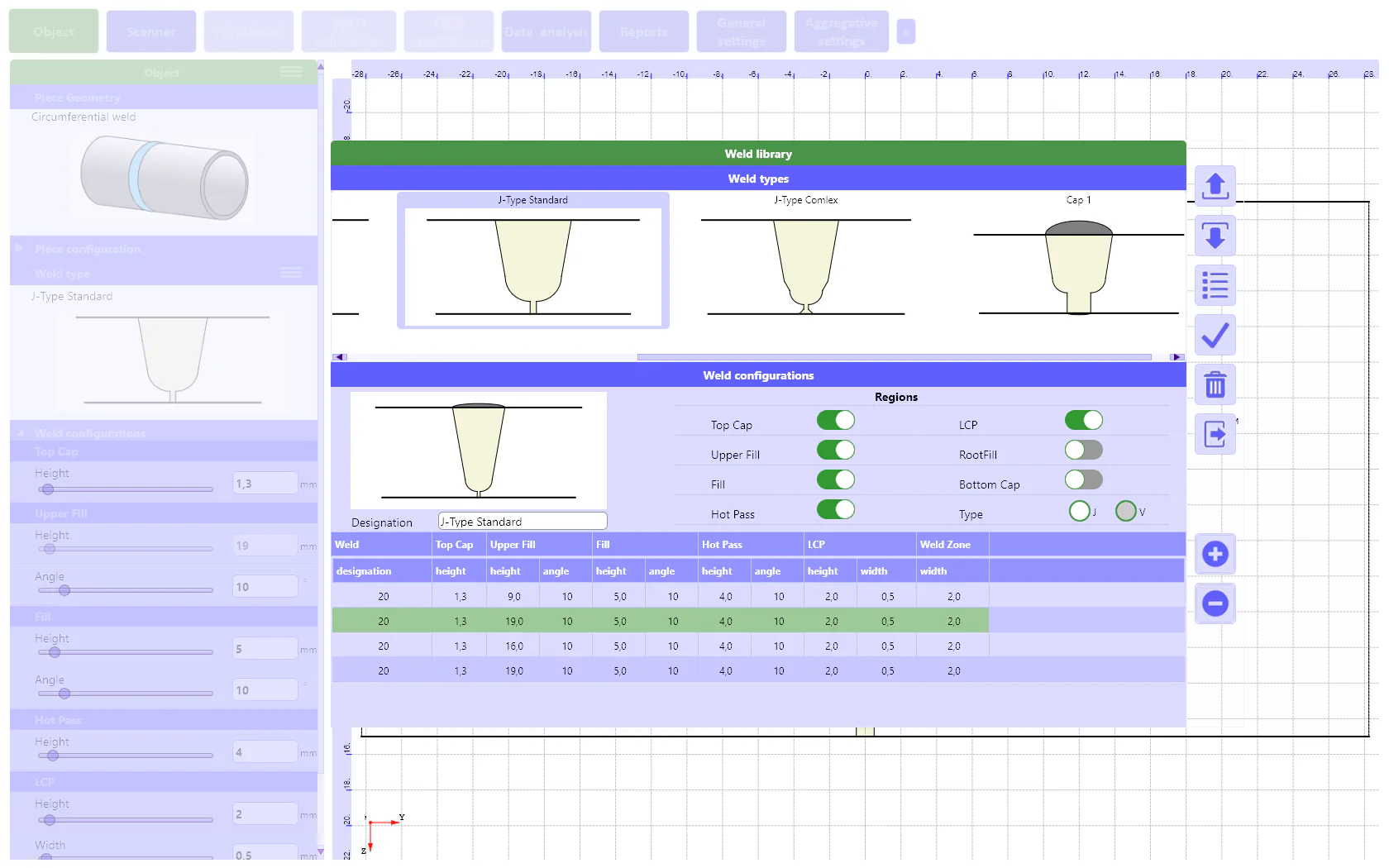

| TOFD wedges specification: — WS45 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 45 |
| TOFD wedges specification: — WS60 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 60 |
| TOFD wedges specification: — * WS70 L-3/8"-TOFD | Thread diameter: 3/8" | Refracted angle o: 70 |
| TOFD wedges specification: — WS45 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 45 |
| TOFD wedges specification: — WS60 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 60 |
| TOFD wedges specification: — WS70 L-M16-TOFD | Thread diameter: M16 | Refracted angle o: 70 |
| Testing objects parameters — Thicknesses | per one path .25 - 2 in (6 - 50 mm); with probe replacement per several paths 50 – 300 mm |
| Testing objects parameters — Diameter for cylindrical objects | from 12 in (300 mm) to flat |
| Testing objects parameters — Diameter for spherical objects | from 16 ft (5 m) to flat |
| Testing objects parameters — Profile types | any |

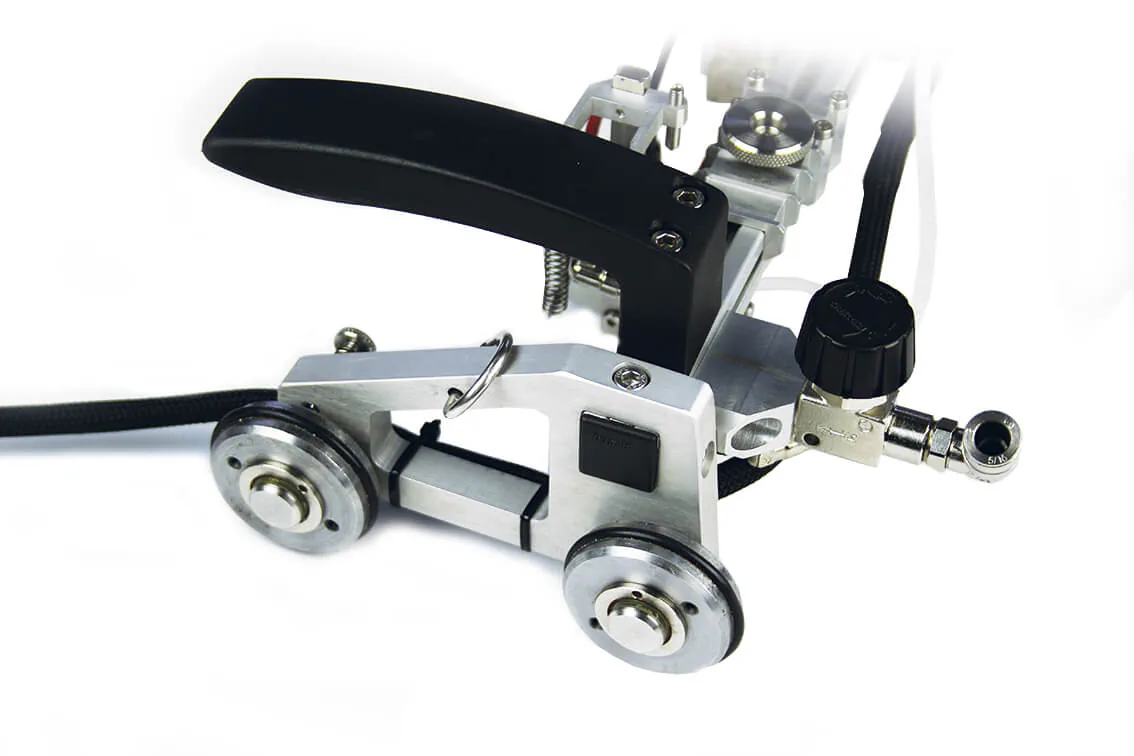

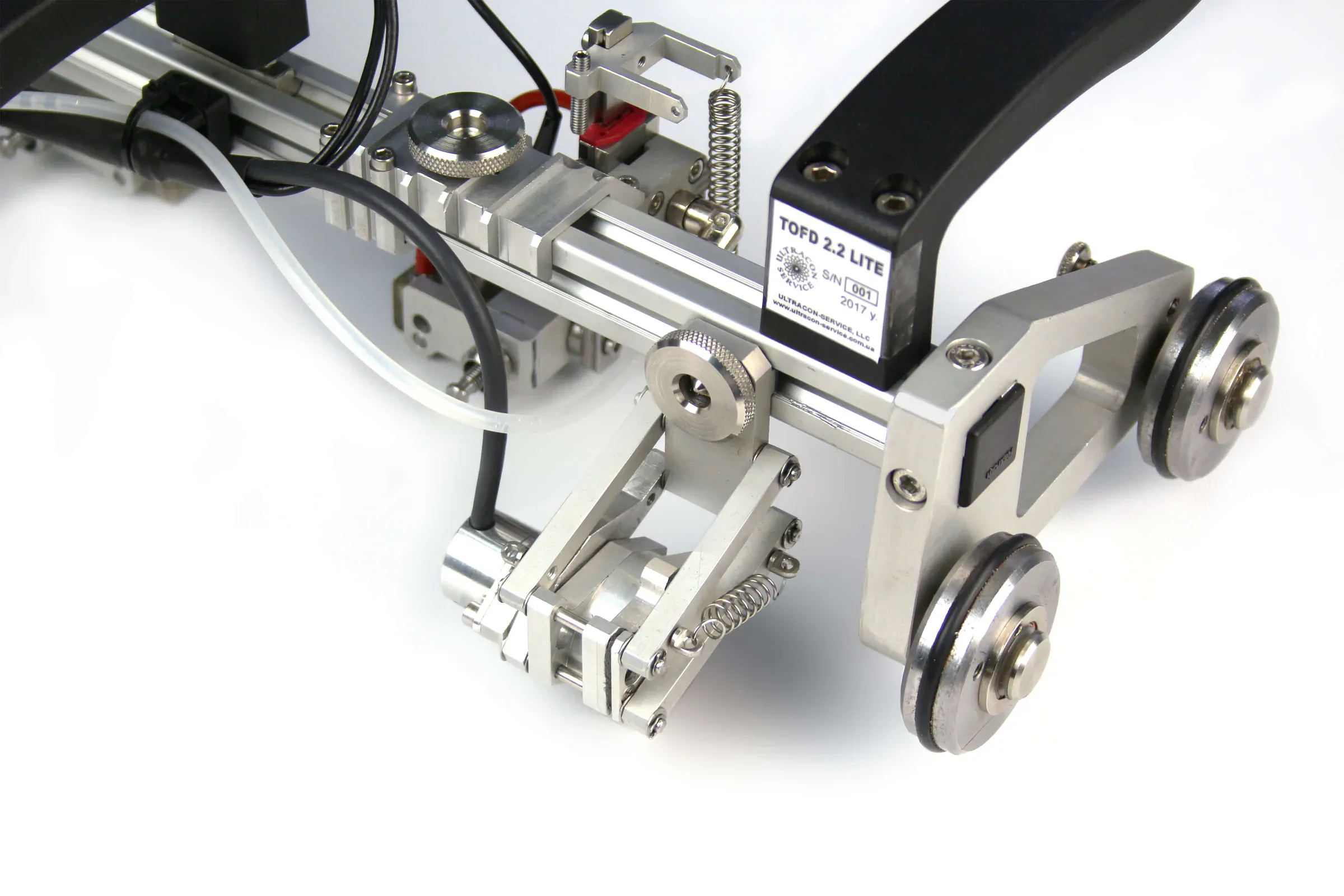

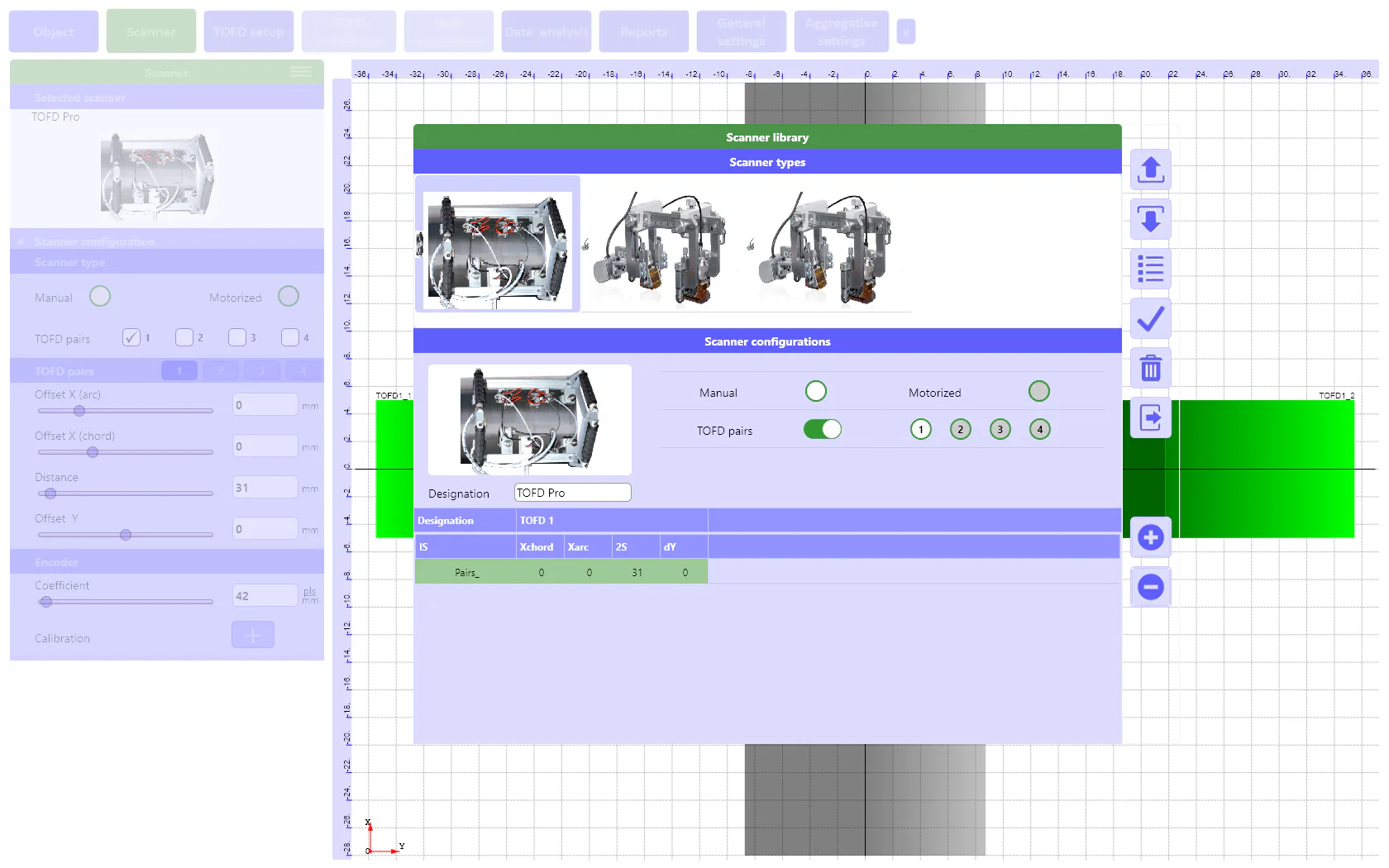

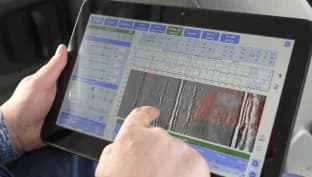

| Scanner TOFD 2.2 Lite — Dimensions (L×W×H) | 450 × 240 × 120mm |
| Scanner TOFD 2.2 Lite — Weight | 2.8 kg |
| Scanner TOFD 2.2 Lite — Number of TOFD pairs | 1 |
| Scanner TOFD 2.2 Lite — Coupling liquid supply | individually for each probe |
| Compatible probes and wedges — Frequencies | 1-15 MHz |
| Compatible probes and wedges — Angles (L-wave) | 45°, 60°, 70° |
| Measurement — Number of cursors | 2 |
| Measurement — Types of cursors | Conventional (cross) Hyperbolic |
| Measurement — Manual positioning | ✔ |
| Measurement — Automatic positioning | ✔ |
| Measurement — Absolute measurements | ✔ |
| Measurement — Relative measurements | ✔ |
| Measurement — Indications table | ✔ |
| Measurement — Indications parameters | X, X 1 , X 2 , dX Z, Z 1 , Z 2 , dZ Type (Point, Top, Bottom, Middle, Volumetric) Amplitude |
| Measurement — Units | mm / in / us |
| Measurement — Output fields | 5 |
| Unit connectors — Pulser and Receiver | 2 × BNC |
| Unit connectors — Encoder | ✔ |
| Unit connectors — Power | ✔ |
| Unit connectors — RS485 | ✔ |
| Unit connectors — LAN | ✔ |
| Unit connectors — Sync input | ✔ |
| Unit connectors — Trigger output | ✔ |
| Pulser — Type | SWP |
| Pulser — Voltage (SWP) | 20 V, 30 V, 40 V, 50 V, 80 V, 100 V |
| Pulser — Energy (SWP) | 20 ns to 500 ns with 10 ns step |
| Pulser — PRF | from 15 to 2000 Hz |
| Receiver — Range | Up to 100 us |
| Receiver — Delay | Up to 100 us |
| Receiver — Gain | 0 to 110 dB, with 0.1 dB step |
| Receiver — Max signal input | 20 V p-p |
| Receiver — Bandwidth | 0.2 MHz - 27 MHz |
| Receiver — Filters | 1 MHz, 2-3 MHz, 4-5 MHz, 10 MHz, 15 MHz, Full band |
| Receiver — Rectification | Full Wave |
| Receiver — Signal Average | 2x / 4x / 8x / 16x / 32x |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
